Connection Bracket VBW-6-N-45
Article number: 001804000119
Manufacturer: Friedemann Wagner GmbH
Product Class: VBW
Design Size: 6
Product name: Connection Bracket VBW-6-N-45, incl. 2x ZR-6

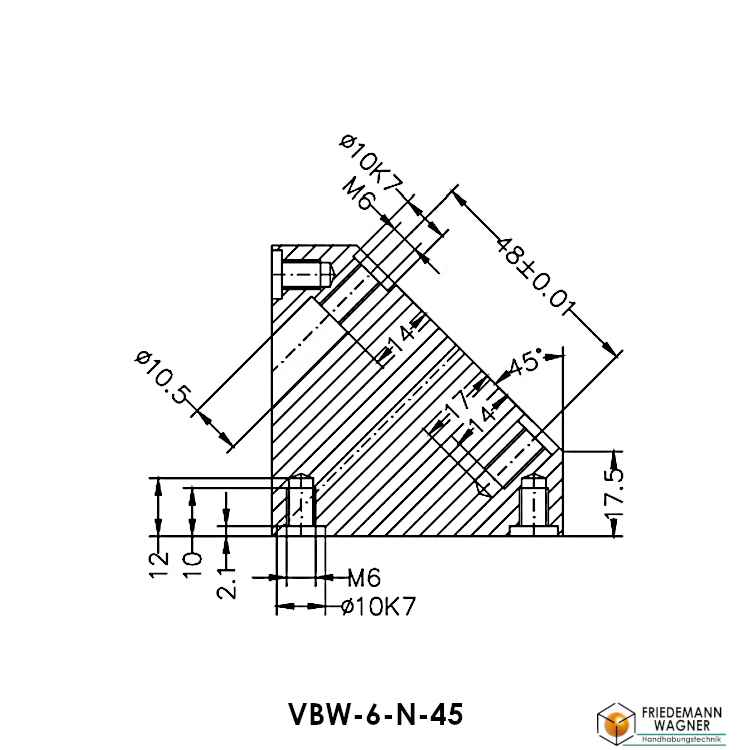

adapter element for quick, backlash-free assembly ✓ 45° angle ✓ for adaptation to customer applications ✓ for modular system from Friedemann Wagner GmbH ✓ size 6 (grid dimension 48mm x 48mm) ✓ various versions see technical drawing in brochure ✓ incl. 2xZR-6
Brochure: link to pdf-file, datasheet and drawing
Operating Instruction*: link to pdf-file operating instructions
* in case of accessories: link to selection tables
Technical Data :
Technical data and diagrams are non-binding and for guidance only.
All informations are valid at 6 bar pressure, air consumption is valid at 1 bar.
Technica data and constructions subject to change without prior notice.
All information without engagement.
Product pictures:
Picture may differ from original product.
Choose options
Connection Bracket VBW-6-N-45
product features
001804000119
