3D files available for download in the product finder

For example, would you like to incorporate a Wagner rotary actuator into your design as a 3D model?

Once you have used the product finder

• by direct input (in the search field, magnifying glass )
• manual selection (via mouse clicks ) or
• selected filter criteria ( set filter )

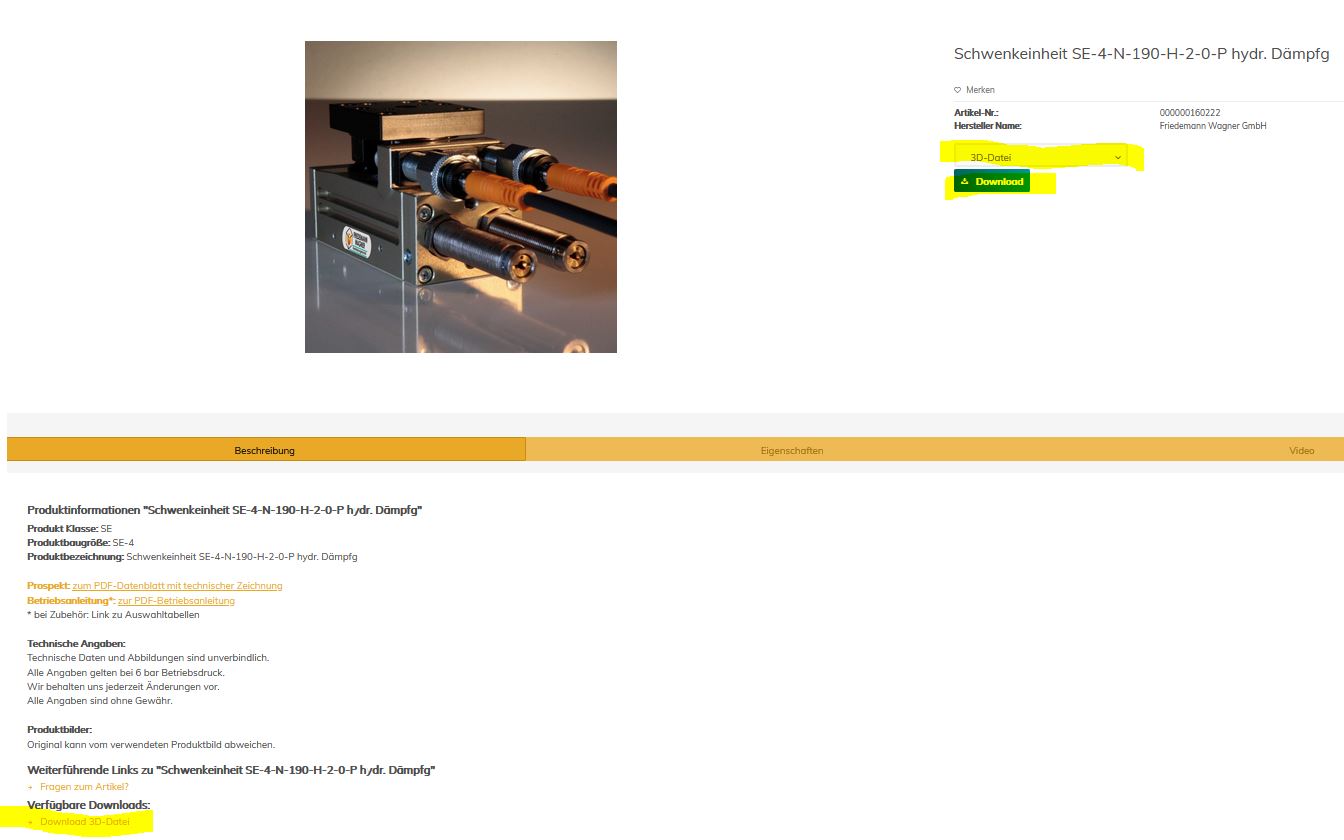

the appropriate product is displayed, you will find the option to download immediately from the top right (pull-down option) and bottom left (text links).

• 3D file (STP file, zipped)
• Brochure, technical data
• Operating instructions

The import is probably slightly different for each CAD system.

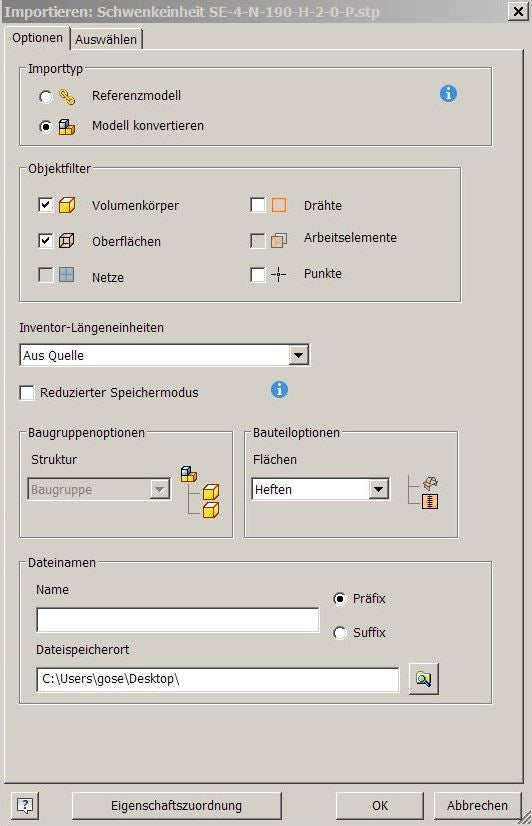

In the image on the right you will find the recommendations for importing as a solid model into the CAD software Inventor.
