short-stroke cylinders by Friedemann Wagner GmbH
If searching for short strokes you will find several units of linear and lifting modules in our portfolio.
No matter if lifting- or linear-unit: keep in mind, that the named stroke of the modules still can be reduced via threads. Perfect flexibility for your application!

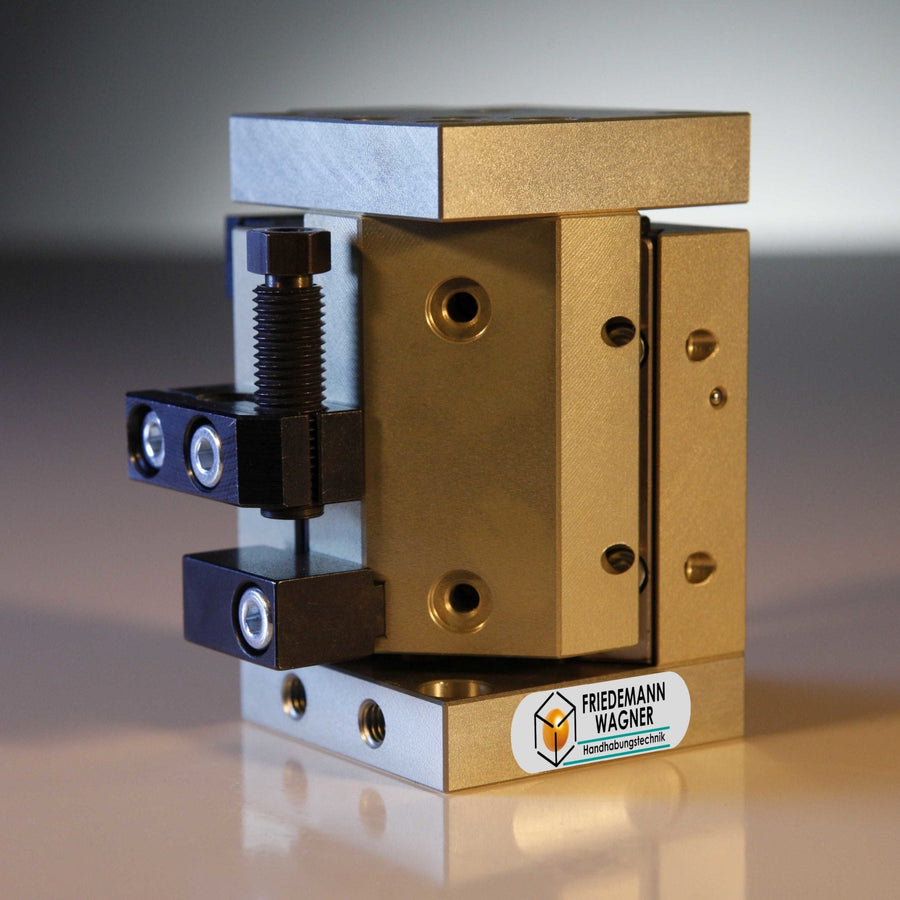

For lifting purposes (vertical movement) we offer type HEK-4 and HE-6 with a stroke of 10 mm (preselection).
Furthermore units with 25 mm stroke are available (preselection).
| lifting module | stroke | lifting-/ retraction force |
adjust via |
adjust in range |
| HEK-4 | 10 mm | 80 N / 55 N | screw | 10 mm both sides |
| HE-6 | 10 mm | 150 N / 120 N | hex nut | 0-10 mm |
| HEK-4 | 25 mm | 80 N / 55 N | screw | 14 mm both sides |
| HE-6 | 25 mm | 150 N / 120 N | hex nut | 0 - 25 mm |
| HEK-6 | 25 mm | 185 N / 175 N | screw | 23 mm both sides |
| HE-9 | 25 mm | 470 N / 340 N | hex nut | 0 - 25 mm |
For a fast overview please see our table in brochure lifting units.

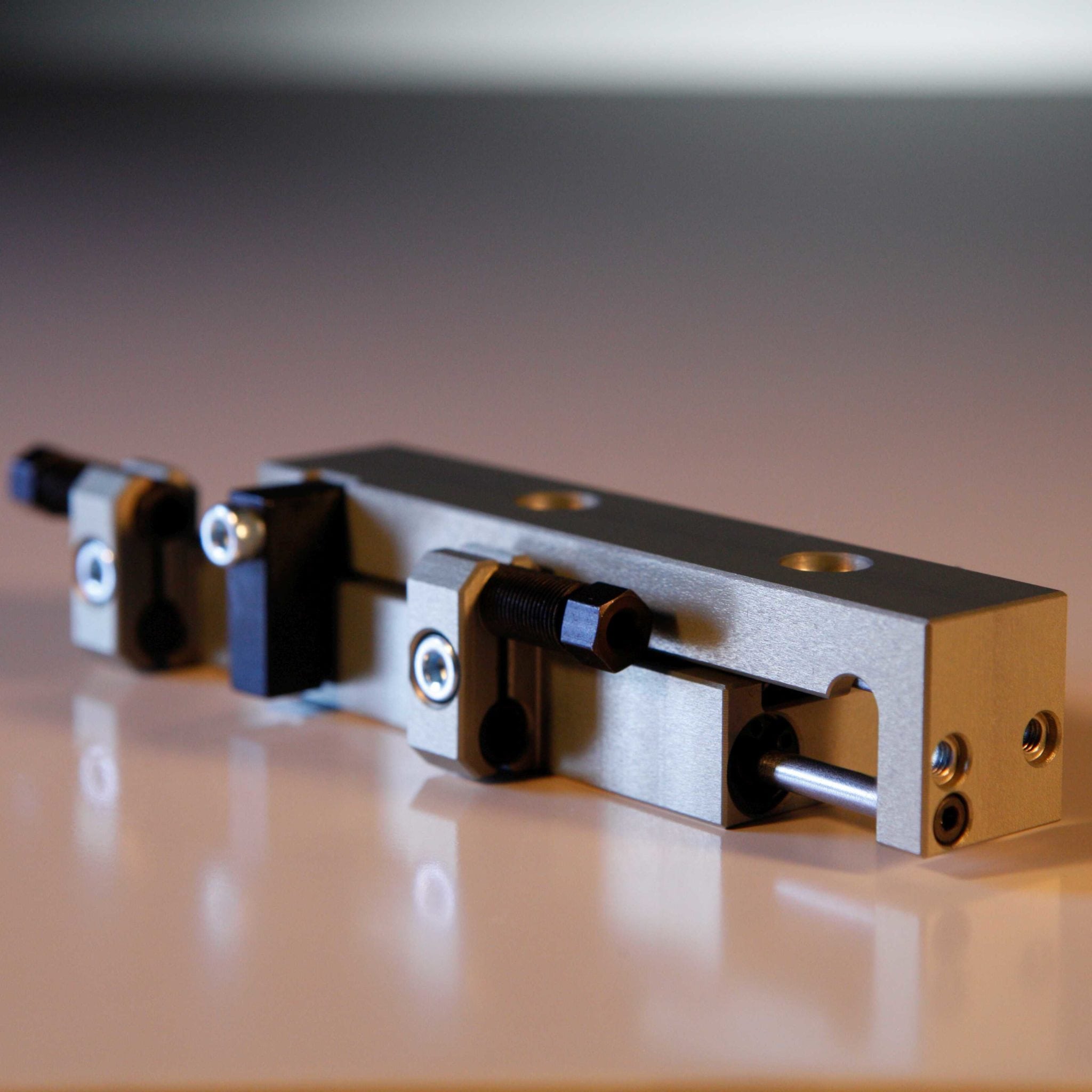

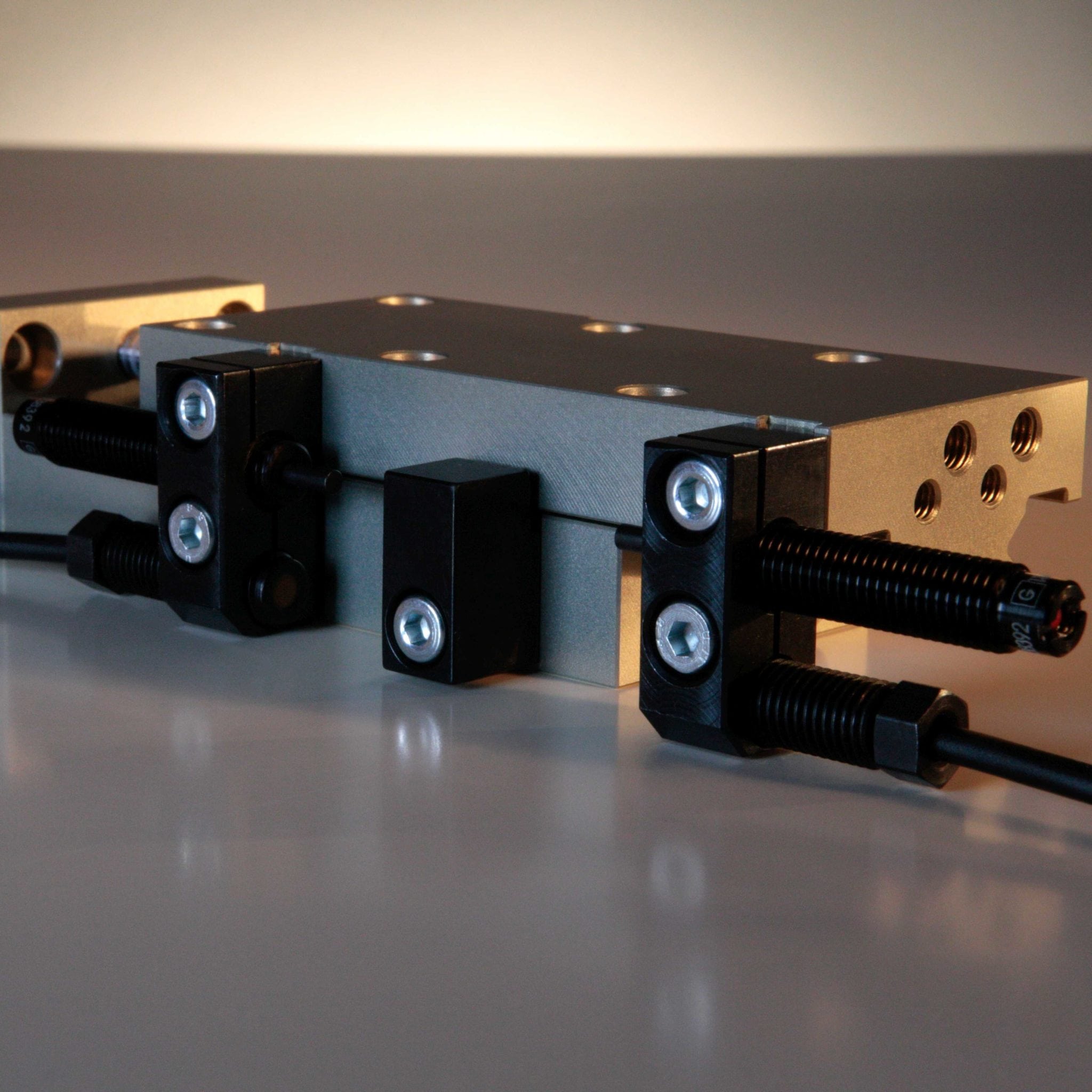

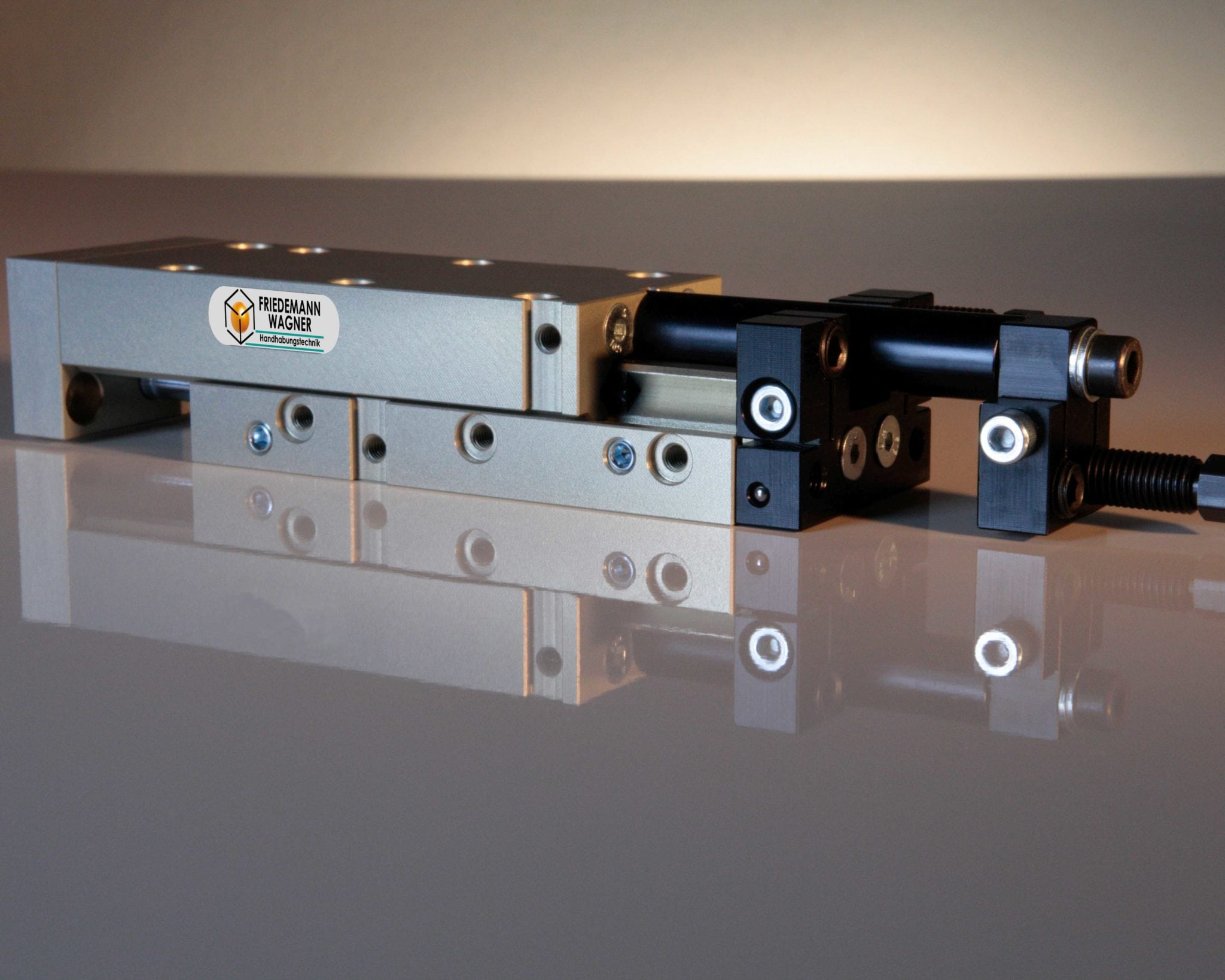

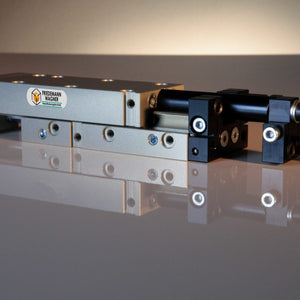

Linear slides, e.g. types LSM-3 and LSK-4 with stroke 20 mm Hub (preselection), or other types are available in 30 or 35 mm stroke length.
| linear module | stroke | lifting-/ retraction force | adjust via |
adust in range |
| LSM-3 | 20 mm | 11 N / 7 N | screw | 15 mm both sides |
| LSK-4 | 20 mm | 45 N / 33 N | screw | 14 mm both sides |
| LSK-4 | 30 mm | 45 N / 33 N | screw | 14 mm both sides |
| LSK-6 | 30 mm | 76 N / 66 N | screw | 23 mm both sides |
| LEM-6 | 30 mm | 45 N / 33 N | hex nut | 0 - 30 mm |
| LSM-3 | 35 mm | 11 N / 7 N | screw | 15 mm both sides |

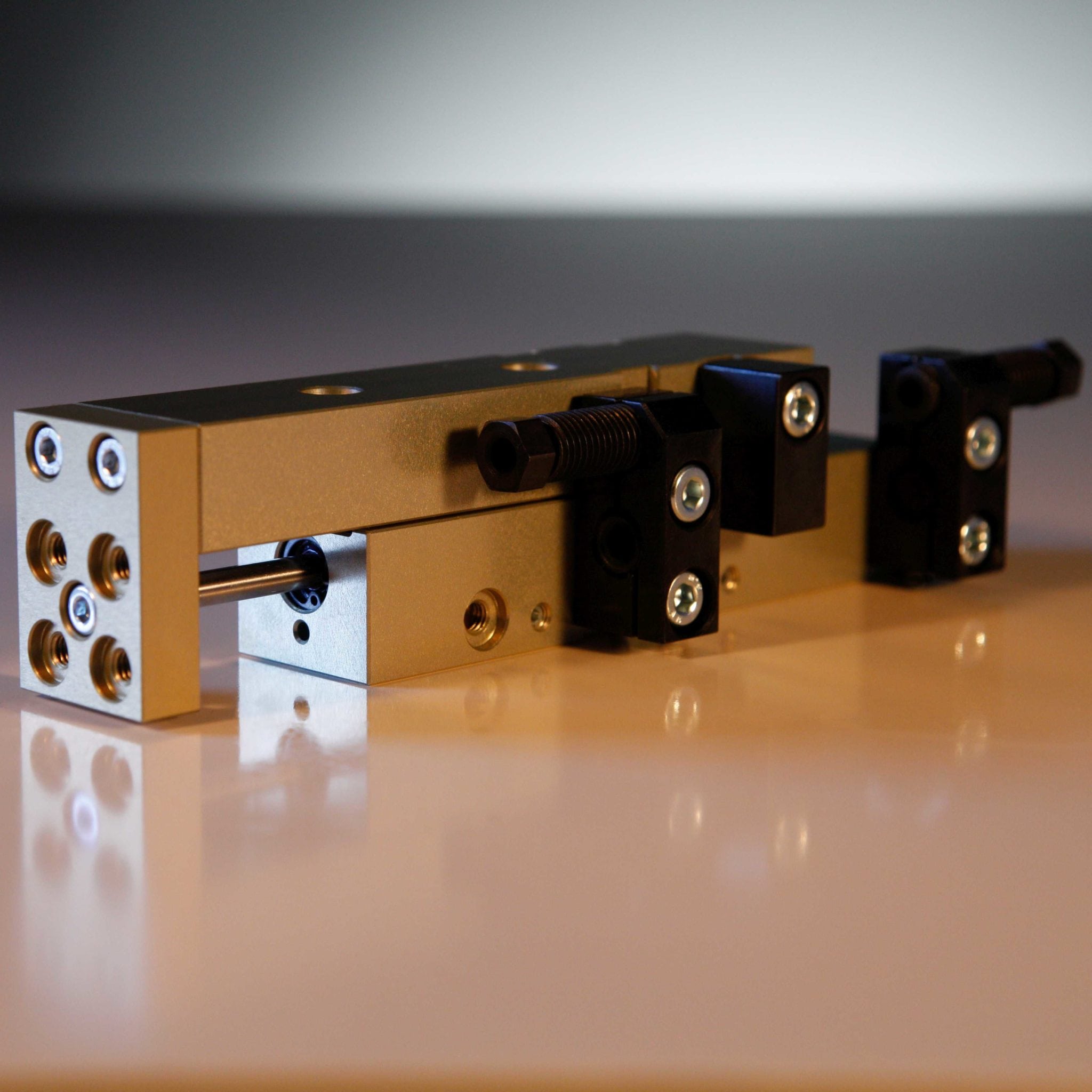

| LSM-4 | 35 mm | 18 N / 13 N | screw | 14 mm both sides |
For a fast overview please see our table in brochure linear-units and -slides.
