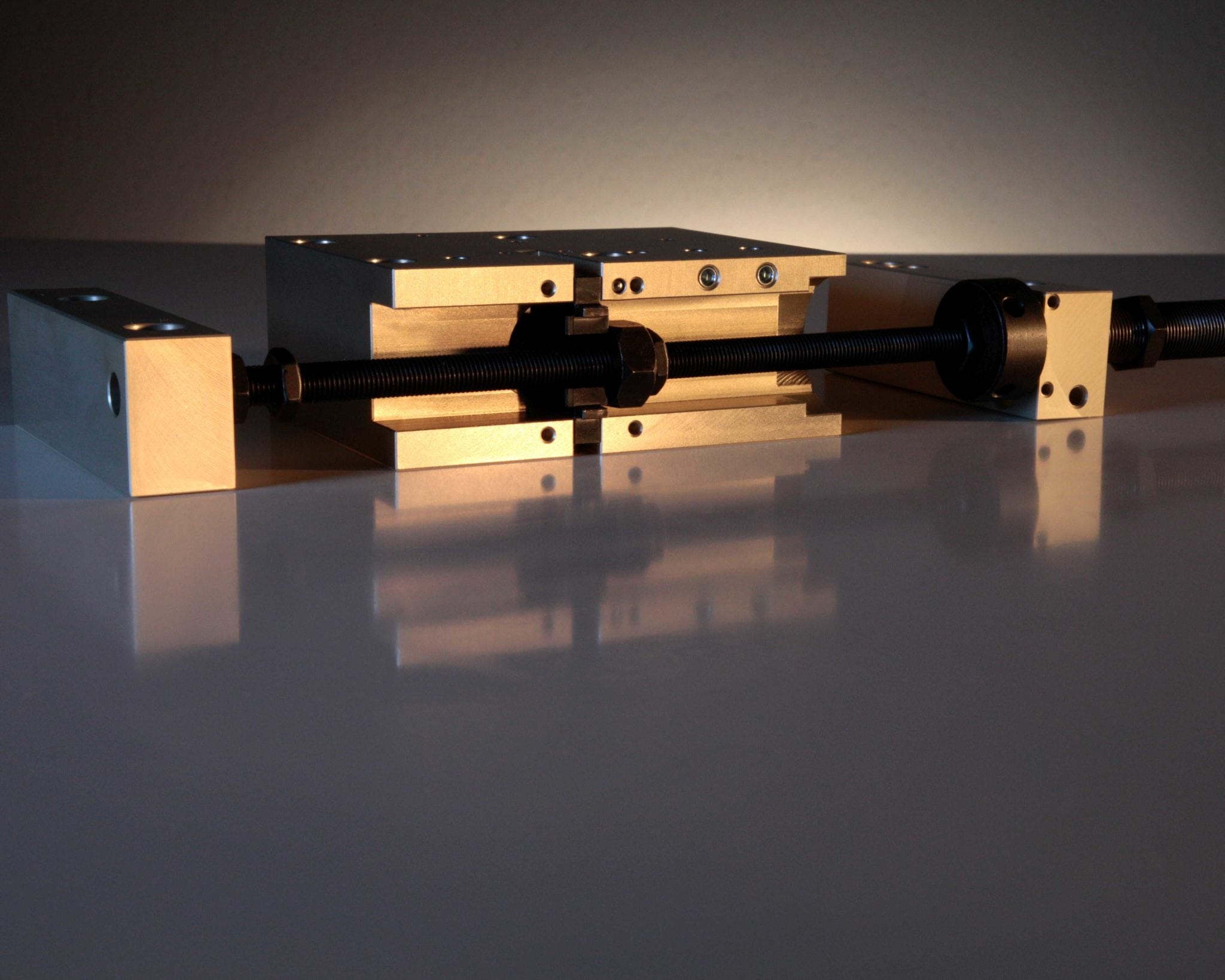

Intermediate Position ZWP-6-VEN-240-H-4-0-P
Article number: 000000150304
Manufacturer: Friedemann Wagner GmbH
Product Class: ZWP LE
Design Size: VEN-6
Product name: Intermediate Position ZWP-6-VEN-240-H-4-0-P
intermediate position ✓ third position ✓ for pick & place modular system ✓ additional module for linear unit VEN-6 with stroke length 240mm ✓ adjustable stroke ✓ flanged to linear unit VEN-6 ✓ hydraulic damping ✓ 4-way air grommet to VEN-6
Brochure: link to pdf-file, datasheet and drawing
Operating Instruction*: link to pdf-file operating instructions
* in case of accessories: link to selection tables
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Intermediate Position ZWP-6-VEN-240-H-4-0-P
product features
Incorrect
4/2 or 5/2 way valve bistable
1
000000150304
Hydraulic
4-8 bars
M5
0-240
1.3
240
8.0
Steel
High-strength Al, anodized
