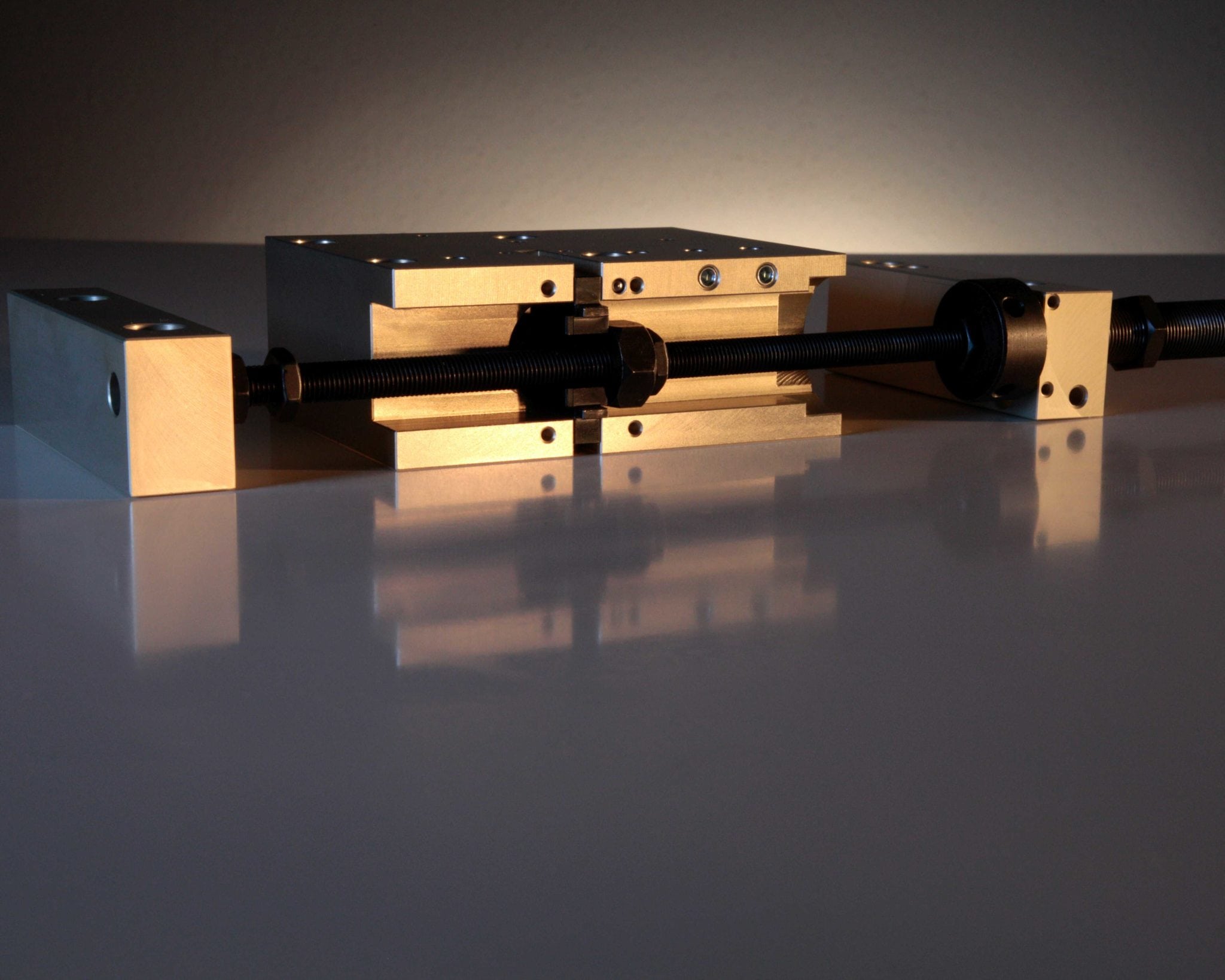

Intermediate Position ZWP-6-VEN-120-H-4-0-P
Article number: 000000150302
Manufacturer: Friedemann Wagner GmbH
element of modular pick & place system
stroke 120 mm
adjustable stroke
piston diameter 16 mm
hydraulic damper single-sided
end-position monitoring possible
- Intermediate position
- third position
- for pick & place module system
- Additional module for linear unit VEN-6 with a maximum stroke length of 120 mm
- is flanged to linear unit VEN-6
- hydraulic damping included
- 4-way air feedthrough to VEN-6
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Intermediate Position ZWP-6-VEN-120-H-4-0-P
Technical Information
| Control | 4/2 or 5/2 way valve bistable |
| Number of Intermediate Positions | 1 |
| Article Number | 150302 |
| Damping | Hydraulic |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | M5 |
| Adjustment Range [mm] | 0-120 |
| Weight [kg] | 1.26 |
| Stroke [mm] | 120 |
| Air Consumption per Cycle [cm³] | 8.0 |
| Material Stops | Steel |
| Material Housing | High-strength Al, anodized |
