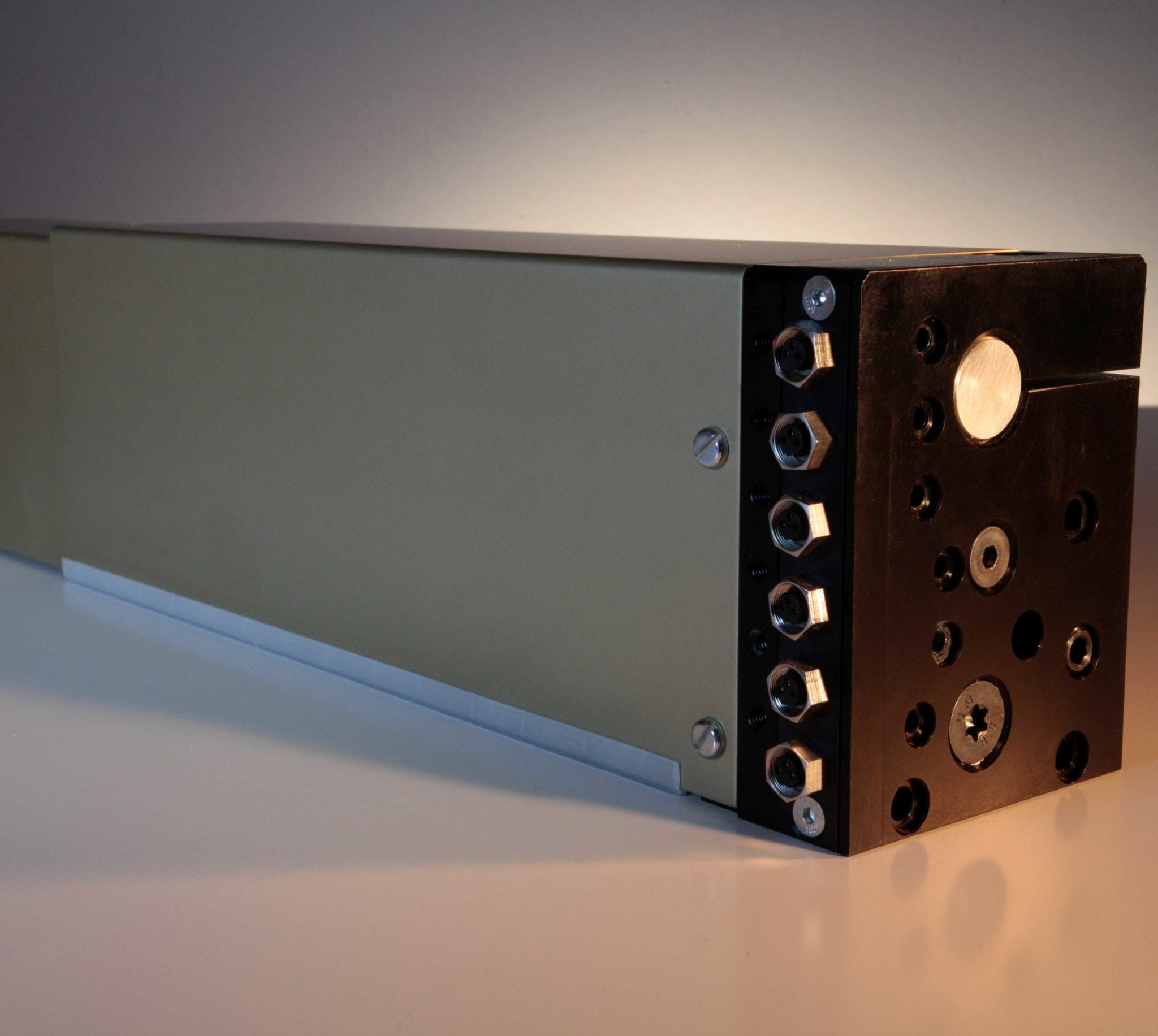

Linear Unit LEN-6-I-100-H-6-6-P with hydr.damper
Article number: 000000115101
Manufacturer: Friedemann Wagner GmbH
element of modular pick & place system
stroke 100 mm
adjustable stroke
piston diameter 25 mm
hydraulic dampers both-sided
end-position monitoring included
6-fold air grommet
6-fold signal-grommet
- Pick & Place module
- Can be mounted on a tripod or swivel unit
- Can be used as a stand-alone unit
- Pneumatic linear unit with sheet metal cover
- with air and signal feedthrough
- Repeatability +/- 0.02mm
- Hydraulic damping + sensors + connection cables included
- Technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Linear Unit LEN-6-I-100-H-6-6-P with hydr.damper
Technical Information
| Cover | Yes |
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 115101 |
| Damping | Hydraulic |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | M5 |
| Adjustment Range [mm] | 19 and 30 |
| Weight [kg] | 6.5 |
| Stroke [mm] | 100 |
| Bearing Type | Ball bushing sealed |
| Air Consumption per Cycle [cm³] | 98.2 |
| Retraction Force at 6 bar [N] | 140 |
| Impact Force at 6 bar [N] | 210 |
| Maximum Load Capacity [kg] | 20.0 |
| Material Stops | Steel |
| Material Housing | High-strength Al, anodized |
