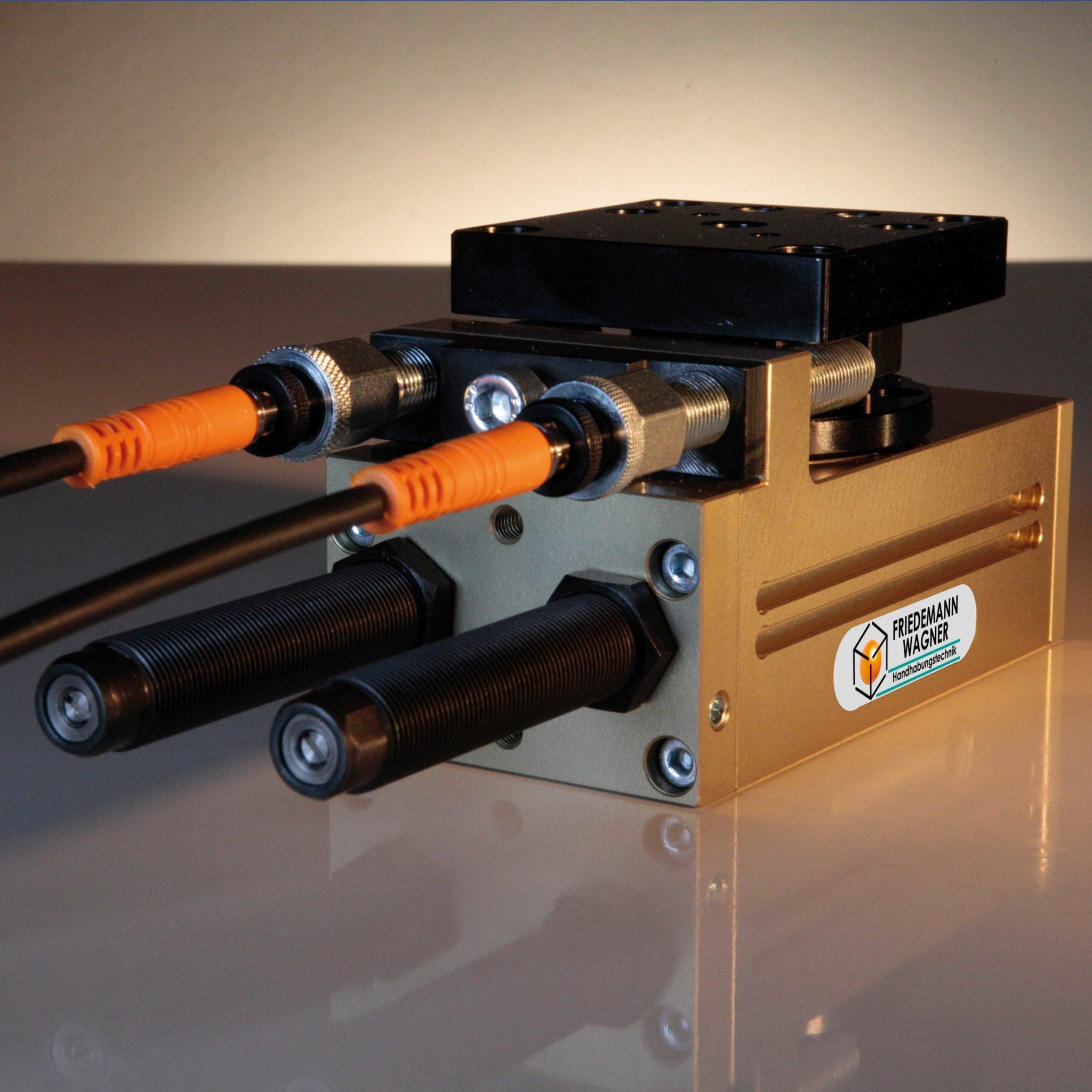

Swivel Unit SE-6-N-190-H-4-0-P with dampers
Article number: 000000160322
Manufacturer: Friedemann Wagner GmbH
Product Class: SE
Design Size: SE-6
Product name: Swivel Unit SE-6-N-190-H-4-0-P with dampers
pneumatic rotary actuator ✓ rotation angle 0-190° ✓ swivel angle adjustable from the outside ✓ full torque in the end positions ✓ all interfering edges on one side ✓ hollow stop screws for mounting the sensor ✓ high-strength aluminum housing with milled, external stop ✓ 4-way air feed-through into the rotating shaft ✓ with damping ✓ technical data see below
Brochure: link to pdf-file, datasheet and drawing
Operating Instruction*: link to pdf-file operating instructions
* in case of accessories: link to selection tables
Technical Data :
Technical data and diagrams are non-binding and for guidance only.
All informations are valid at 6 bar pressure, air consumption is valid at 1 bar.
Technica data and constructions subject to change without prior notice.
All information without engagement.
Product pictures:
Picture may differ from original product.
Choose options
Swivel Unit SE-6-N-190-H-4-0-P with dampers
product features
4/2 or 5/2 way valve bistable
000000160322
Normal
910.0
280.0
Hydraulic
3.5
4.38
4-8 bars
M5
190° or +/- 95° around the center position
1.45
4-0
49.0
1164
738.46
0.3-1.2
Hardened steel
Hardened steel
High-strength Al, anodized
Over 45 years of quality
Made in Germany
Since our foundation in 1979, we have been successfully manufacturing high-precision swivel, rotary indexing, lifting, linear and gripping units in Baden-Württemberg.
