Gripper PGM-29-N-2-K-0-0-P
Article number: 000000002059
Manufacturer: Friedemann Wagner GmbH
Hub je Backe 2 mm
Kolbendurchmesser 10 mm
Endlagenabfrage möglich
- Pneumatic Parallel Gripper PGM
- 0302680 directly from the manufacturer Friedemann Wagner
- Housing made of hard anodized, high-strength aluminum
- Mini-gripper for small workpieces
- always self-centering
- Operation at 2-8 bar

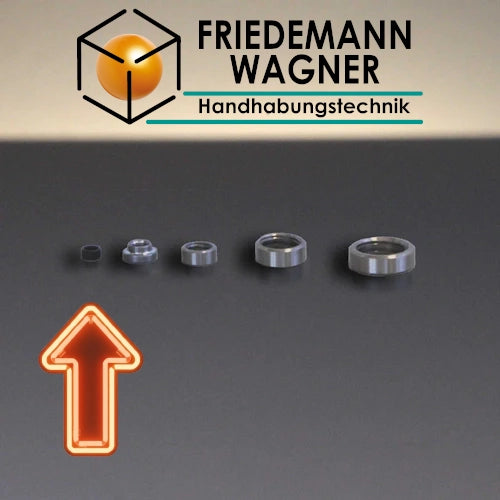

- 6 centering rings included in delivery (for mounting gripper+fingers)
- technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Gripper PGM-29-N-2-K-0-0-P
PRodukteigenschaften
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 2059 |
| Version | Normal |
| Damping | No |
| Pressure Range | 2-8bars |
| Compressed Air Connection | M3 |
| Finger Length max. [mm] | 15 |
| Finger Mass max. [kg] | 0.01 |
| Weight [kg] | 0.025 |
| Stroke per Jaw [mm] | 2 |
| Clamping Force at 6 bar [N] | 16 |
| Air Consumption per Cycle [cm³] | 0.4 |
| Mass Moment of Inertia [kgmm²] | 2.51 |
| Closing Time/Opening Time [s] | 0.03 |
| Spreading Force at 6 bar [N] | 20 |
| Material Guide Shaft | Stainless steel hardened |
| Material Housing | High-strength Al, hard anodized |
| Material Piston Rod | Rustproof |
| Material Deflector | X45NiCrMo4 hardened |
Over 45 years of quality
Made in Germany
Since our foundation in 1979, we have been successfully manufacturing high-precision swivel, rotary indexing, lifting, linear and gripping units in Baden-Württemberg.
Special design features
with special benefits
Day after day, we meet the highest technical and quality requirements of our renowned customers.
Similar articles

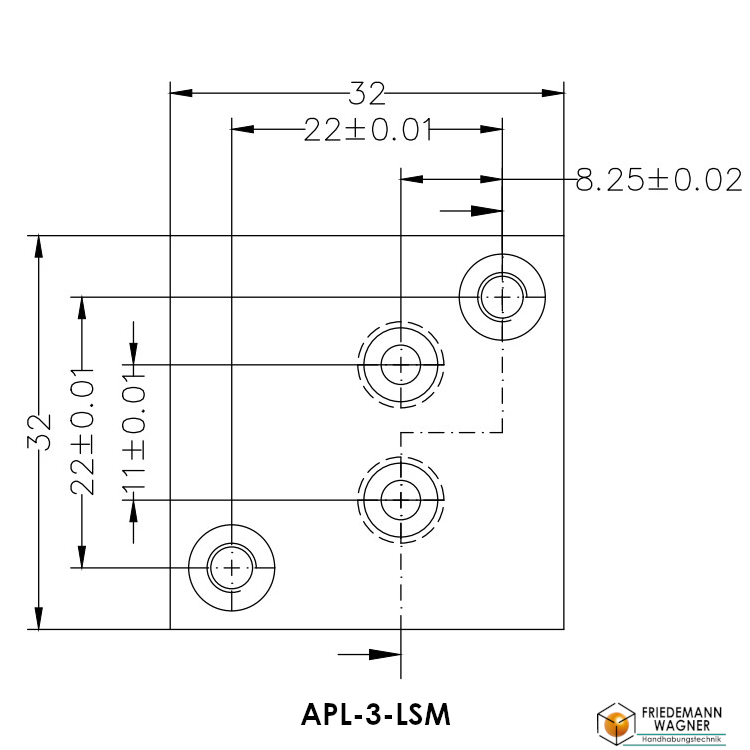

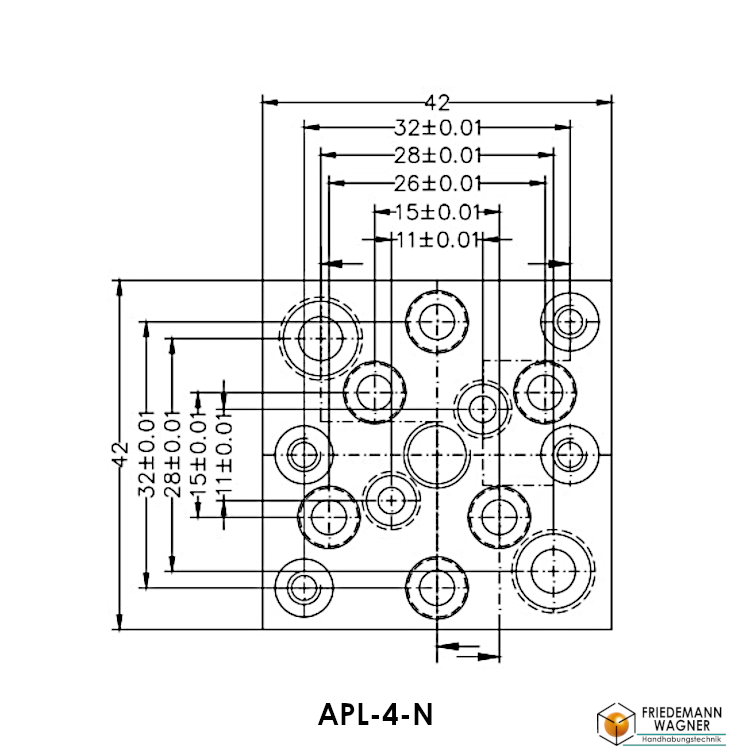

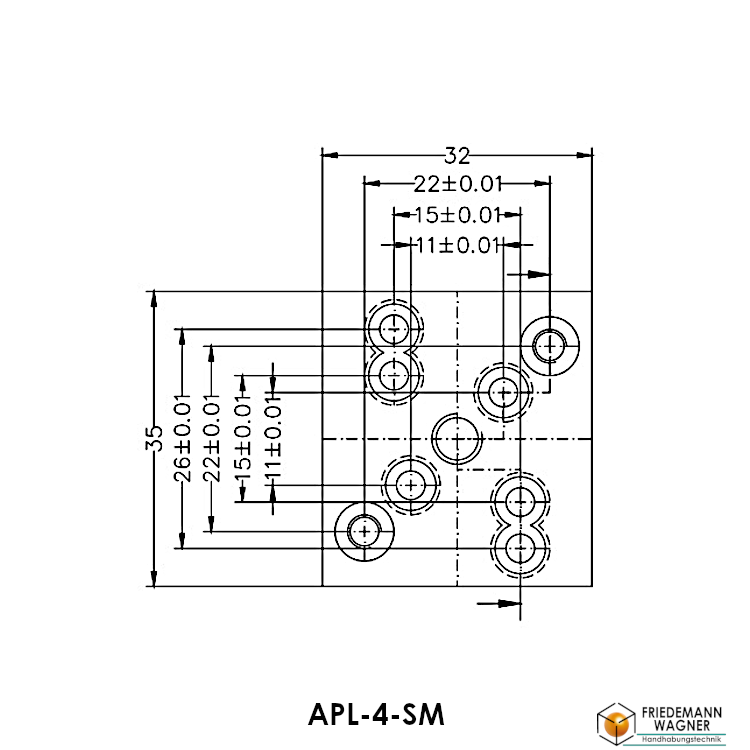

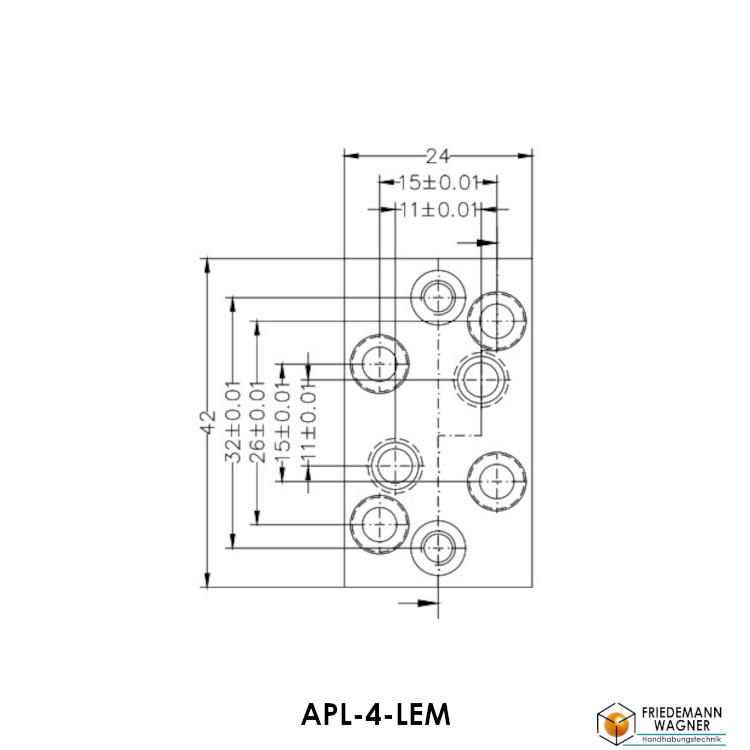

Accesories
