Adaptor Plate APL-4-SM
Article number: 001804000133
Manufacturer: Friedemann Wagner GmbH
Product Class: VBW
Design Size: 4
Product name: Adaptor Plate APL-4-SM, incl. 2xZR-4

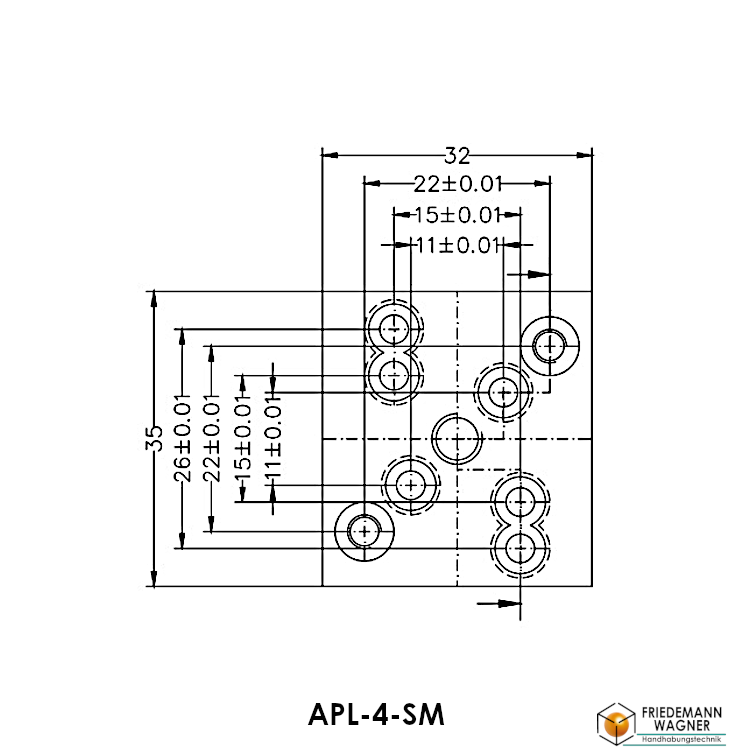

adapter plate for quick, backlash-free installation ✓ e.g. for mini rotary actuator SM-4 ✓ for adaptation to customer applications ✓ for modular system from Friedemann Wagner GmbH ✓ size 4 (grid dimension 32mm x 32mm) ✓ various versions see technical drawing in brochure ✓ incl. 2xZR-4
Brochure: link to pdf-file, datasheet and drawing
Operating Instruction*: link to pdf-file operating instructions
* in case of accessories: link to selection tables
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Adaptor Plate APL-4-SM
product features
001804000133
Over 45 years of quality
Made in Germany
Since our foundation in 1979, we have been successfully manufacturing high-precision swivel, rotary indexing, lifting, linear and gripping units in Baden-Württemberg.
Special design features
with special benefits
Day after day, we meet the highest technical and quality requirements of our renowned customers.
