Swivel Unit SHE-9-A-190-HS-0-0-P with dampers
Article number: 000000165004
Manufacturer: Friedemann Wagner GmbH
full torque in end-positions
adjustable swivel range 0-190°
piston diameter 2x32 mm
end-position monitoring possible
hydraulic dampers both-sided
- Cost-effective pneumatic rotary drive
- Swivel angle externally adjustable

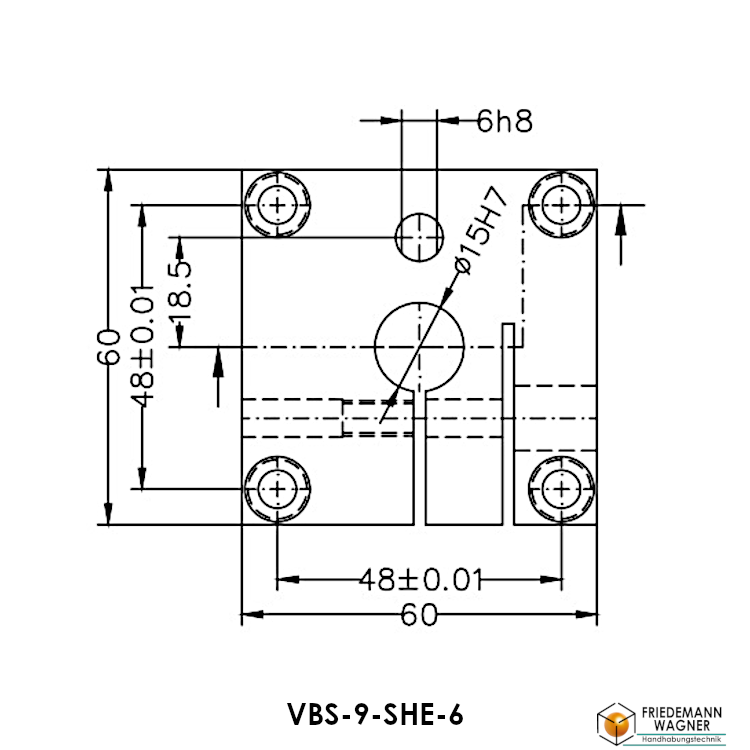

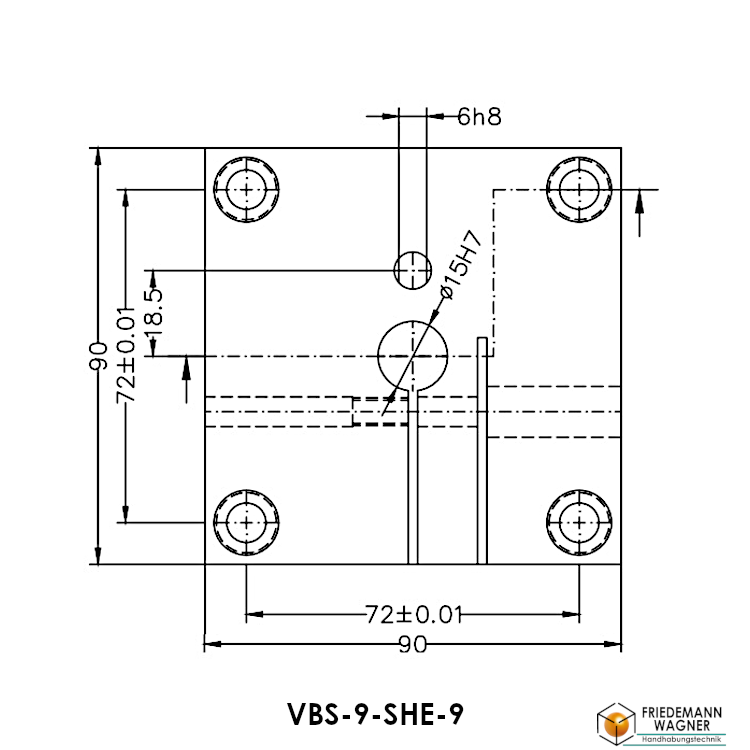

- Connection plate as swivel surface available as an accessory
- High-strength aluminum housing
- Full power in end positions due to mounted external stop
- Hollow stop screws for sensor mounting
- Various variants available
- Dampers accessible from outside
- Only one cylinder can be controlled
- Technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Swivel Unit SHE-9-A-190-HS-0-0-P with dampers
Technical Information
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 165004 |
| Version | stop |
| Axial Load stat. Compression [N] | 2292.5 |
| Axial Load stat. Tension [N] | 1085.0 |
| Damping | Hydraulic |
| Torque at 6 bar eff. [Nm] | 8.0 |
| Torque at 6 bar theo. [Nm] | 9.46 |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | G1/8 |
| Adjustment Range [°] | 190° or +/- 95° around the center position |
| Weight [kg] | 2.93 |
| Integration Air Signal | 0-0 |
| Air Consumption per Cycle [cm³] | 101.0 |
| Mass Moment of Inertia max [kgcm²] | 4800 |
| Radial Load at Flange [N] | 2834.41 |
| Swivel Time [s] | 0.4-1.8 |
| Material Stops | Hardened steel |
| Material Stop Screws | Hardened steel |
| Material Housing | High-strength Al, anodized |
| Material Rack | ETG-100 tenifer treated |
