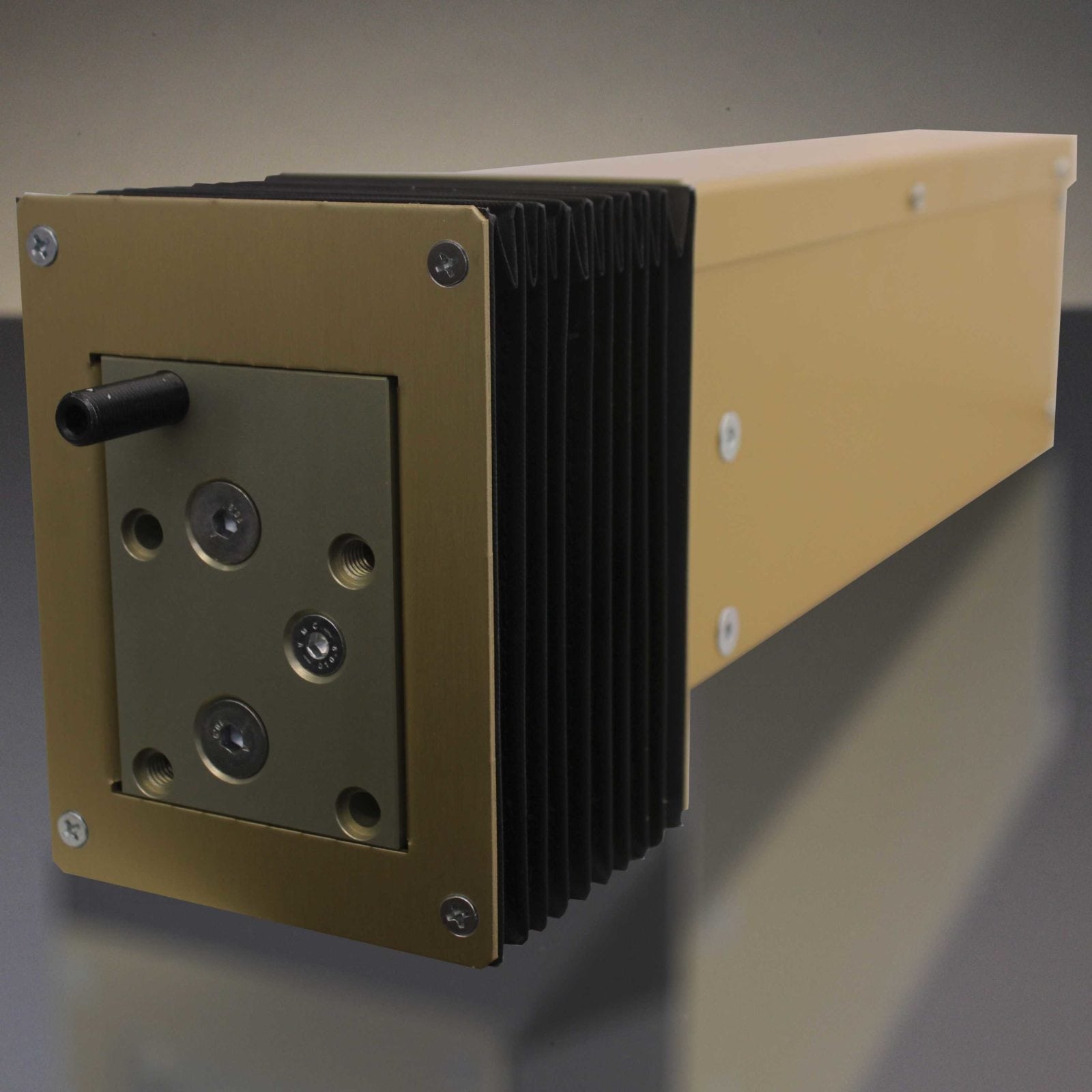

Linear Unit LES-6-SA-100-H-0-0-P with hydr. damper and cover
Article number: 000000100511
Manufacturer: Friedemann Wagner GmbH
stroke 100 mm
adjustable stroke
piston-diameter 20 mm
hydraulic dampers both-sided
end-position monitoring possible
- Pneumatic linear unit with damper
- with cover + bellows
- fixed stops
- sealed super ball bushing
- for gantry or sliding operation
- Repeatability +/- 0.02mm
- technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Linear Unit LES-6-SA-100-H-0-0-P with hydr. damper and cover
Technical Information
| Cover | Yes |
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 100511 |
| Damping | Hydraulic |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | M5/G1/8 |
| Adjustment Range [mm] | 55 both sides |
| Weight [kg] | 3.4 |
| Stroke [mm] | 100 |
| Bearing Type | Super ball bushing sealed |
| Air Consumption per Cycle [cm³] | 63.0 |
| Retraction Force at 6 bar [N] | 125 |
| Impact Force at 6 bar [N] | 150 |
| Maximum Load Capacity [kg] | 18.5 |
| Material Stops | Steel |
| Material Housing | High-strength Al, anodized |
