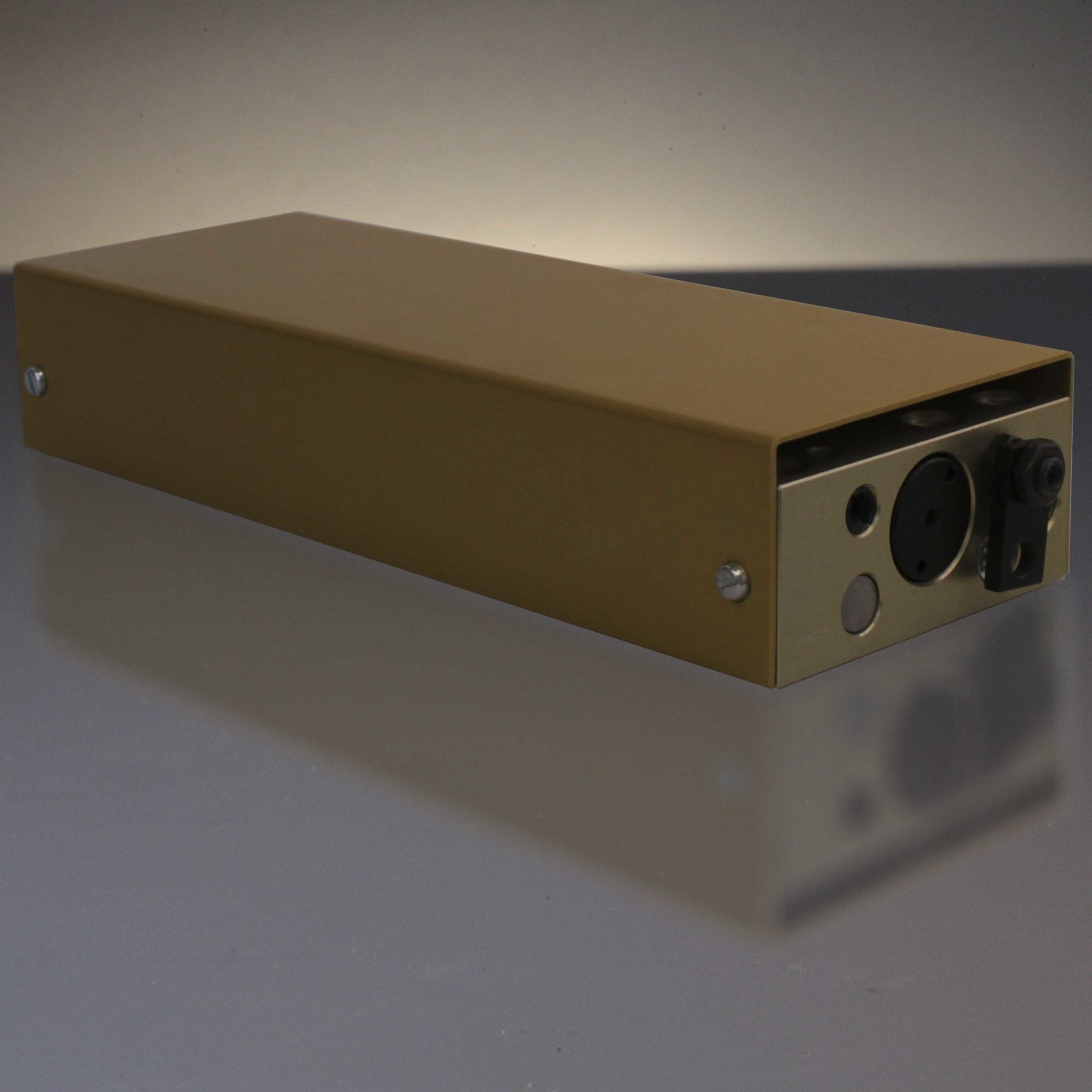

Linear Unit LEM-9-MA-170-K-0-0-P with cover
Article number: 000000202523
Manufacturer: Friedemann Wagner GmbH
stroke 170 mm
adjustable stroke
piston-diameter 20 mm
end-position monitoring possible
- Pneumatic linear unit
- Fixed stops
- Sealed ball bushing
- Gantry or sliding operation
- Gantry operation without substructure
- Repeatability +/- 0.03mm
- Special version with cover
- Technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Linear Unit LEM-9-MA-170-K-0-0-P with cover
Technical Information
| Cover | Yes |
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 202523 |
| Damping | No |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | M5 |
| Adjustment Range [mm] | 0-170 |
| Weight [kg] | 2.1 |
| Stroke [mm] | 170 |
| Bearing Type | Ball bushing sealed |
| Air Consumption per Cycle [cm³] | 107.0 |
| Retraction Force at 6 bar [N] | 110 |
| Impact Force at 6 bar [N] | 135 |
| Maximum Load Capacity [kg] | 3.7 |
| Material Stops | Steel |
| Material Housing | High-strength Al, hard anodized |
