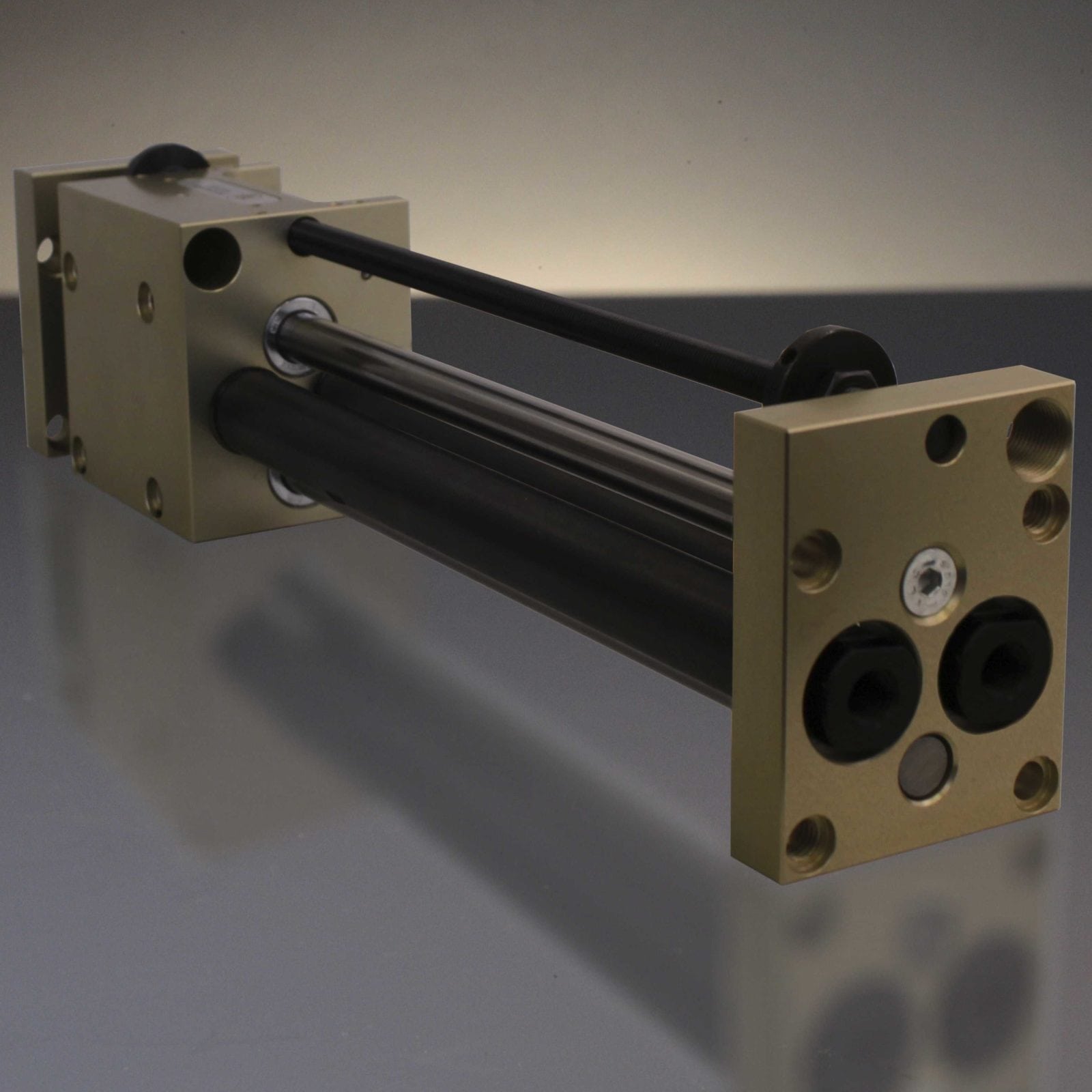

Linear unit LE-6-Z-300-K-0-0-P with 2 drive cylinders.
Article number: 000000100013
Manufacturer: Friedemann Wagner GmbH
stroke 300 mm
adjustable stroke
piston diameter 2x16 mm
end-position monitoring possible
- Pneumatic linear unit without damping
- fixed stops
- sealed ball bushing
- for gantry or sliding operation
- double force, thanks to 2 cylinders
- repeatability +/- 0.02mm
- technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Linear unit LE-6-Z-300-K-0-0-P with 2 drive cylinders.
Technical Information
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 100013 |
| Damping | No |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | M5/G1/8 |
| Adjustment Range [mm] | 0-300 |
| Weight [kg] | 2.1 |
| Stroke [mm] | 300 |
| Bearing Type | Ball bushing sealed |
| Air Consumption per Cycle [cm³] | 242.0 |
| Retraction Force at 6 bar [N] | 90 |
| Impact Force at 6 bar [N] | 160 |
| Maximum Load Capacity [kg] | 2.0 |
| Material Stops | Steel |
| Material Housing | High-strength Al, anodized |
