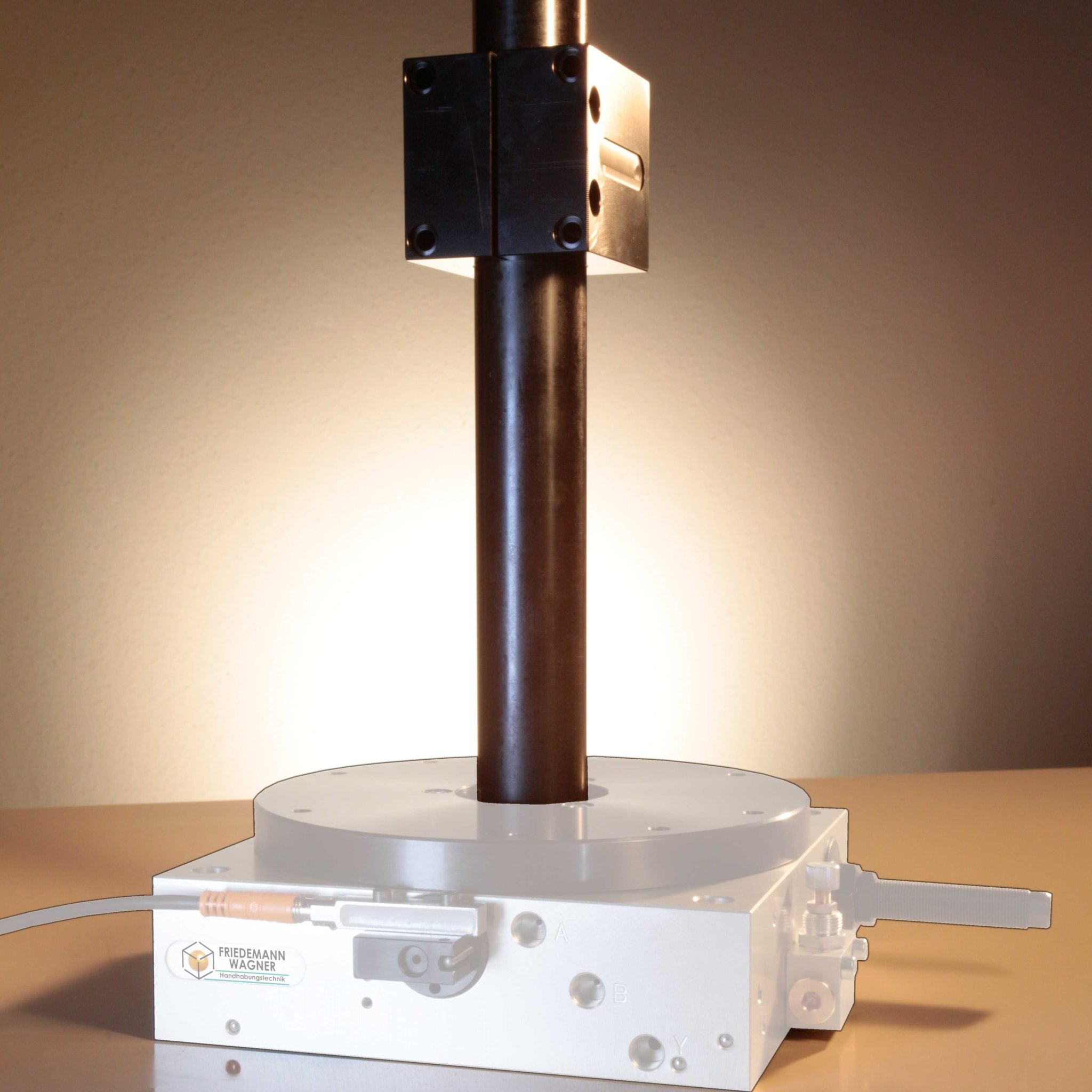

Screw-In Column ES-6-KL-200 with clamping piece
Article number: 000000182201
Manufacturer: Friedemann Wagner GmbH
Product Class: ES_STV_KL
Design Size: 6
Product name: Screw-In Column ES-6-KL-200 with clamping piece
screw-in column with clamping piece ✓ additional module for pneumatic rotary indexing table RSE-6 ✓ hollow for feed-through ✓ mounting in the fixed center hole of the table ✓ inserting the column (fit h7) into the table hole + threaded ring ✓ attachment to the table
Brochure: link to pdf-file, datasheet and drawing
Operating Instruction*: link to pdf-file operating instructions
* in case of accessories: link to selection tables
Technical Data :
Technical data and diagrams are non-binding and for guidance only.
All informations are valid at 6 bar pressure, air consumption is valid at 1 bar.
Technica data and constructions subject to change without prior notice.
All information without engagement.
Product pictures:
Picture may differ from original product.
Choose options
Screw-In Column ES-6-KL-200 with clamping piece
product features
000000182201
320
1.87
0.42
1.45
200
