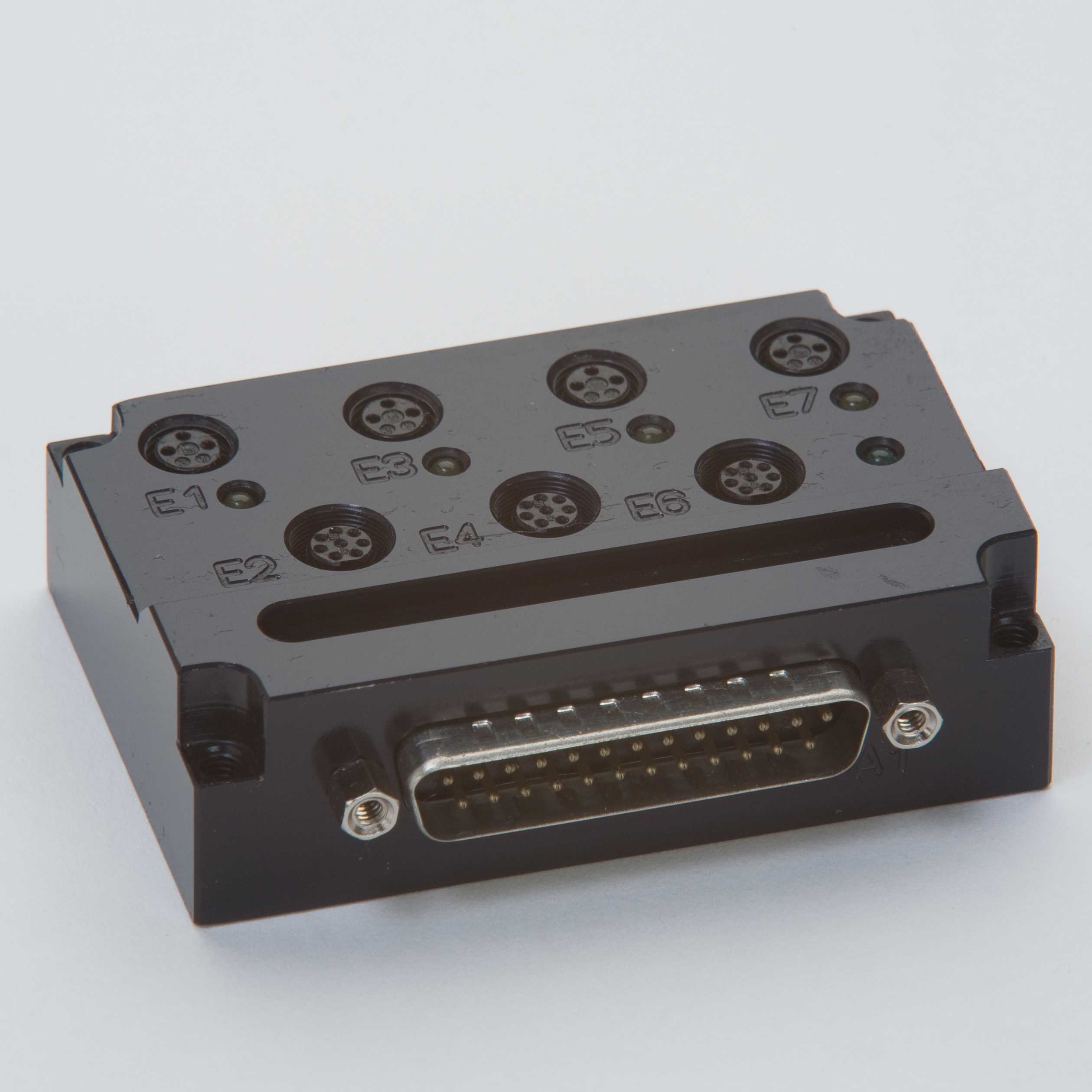

Multiway connector STL-8-E43-E38-A25
Article number: 000000001834
Manufacturer: Friedemann Wagner GmbH
Product Class: STL
Design Size:
Product name: Multiway connector STL-8-E43-E38-A25
encapsulated terminal ✓ robust aluminum housing ✓ compact design ✓ structured signal collection ✓ 4x3-pin input ✓ 3x8-pin input ✓ 1x25-pin output ✓ can also be used apart from Wagner modules
Brochure: link to pdf-file, datasheet and drawing
Operating Instruction*: link to pdf-file operating instructions
* in case of accessories: link to selection tables
Technical Data :
Technical data and diagrams are non-binding and for guidance only.
All informations are valid at 6 bar pressure, air consumption is valid at 1 bar.
Technica data and constructions subject to change without prior notice.
All information without engagement.
Product pictures:
Picture may differ from original product.
Choose options
Multiway connector STL-8-E43-E38-A25
product features
1x25pin Sub-D
4x3pin/3x8pin
000000001834
10-30VDC / PNP
less than 100mA
0.15
75V DC
Ni+ 0.8um Au
50A
IP65
4.0A
1.0A
-25°C ..+70°C
AlMgSi 1 anodized
Over 45 years of quality
Made in Germany
Since our foundation in 1979, we have been successfully manufacturing high-precision swivel, rotary indexing, lifting, linear and gripping units in Baden-Württemberg.
Special design features
with special benefits
Day after day, we meet the highest technical and quality requirements of our renowned customers.
Similar articles

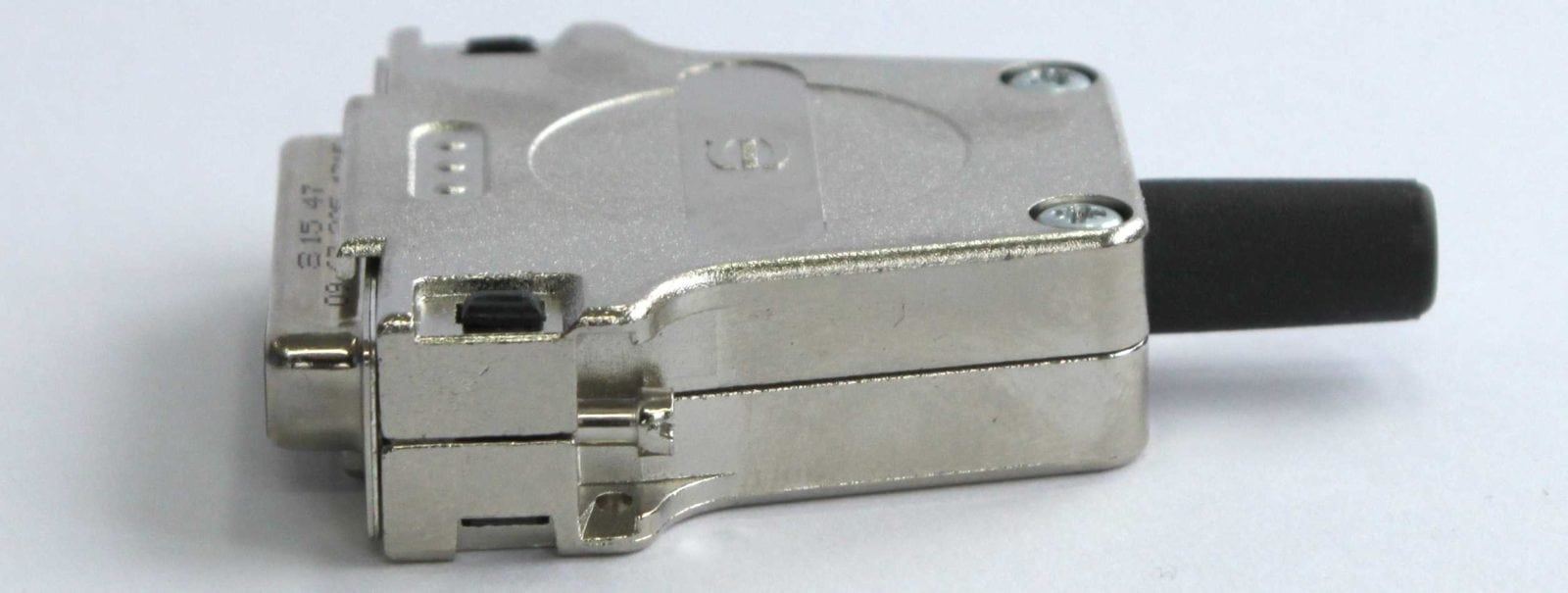

Accesories
