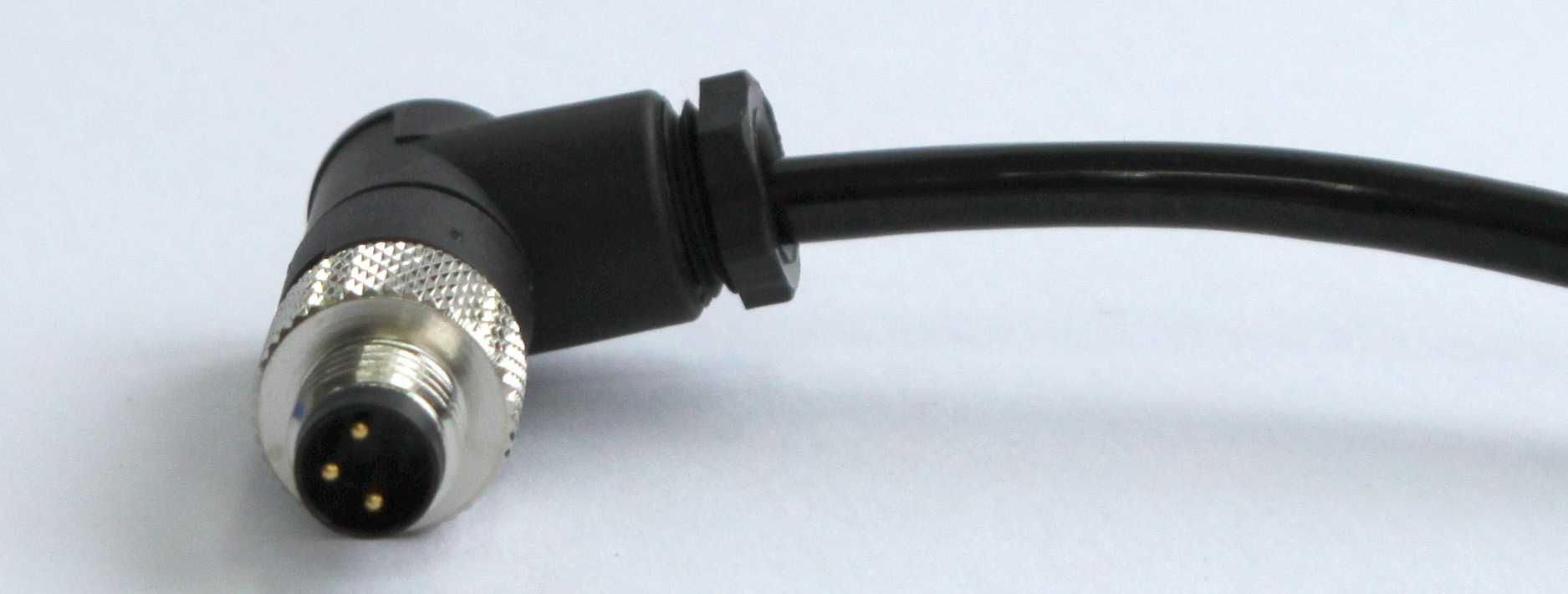

Cable plug 3-pin M8x1 angular, KST-3-W-8-D-5
Article number: 000006509017
Manufacturer: Friedemann Wagner GmbH
Product Class: STV-KA
Design Size:
Product name: Cable plug 3-pin M8x1 angular, KST-3-W-8-D-5, cable suitable for drag chains
connection cable 3-pin ✓ M8x1 ✓ angled connector with 5m cable end ✓ accessories for Wagner modules ✓ technical data see below ✓ cable suitable for drag chains
Brochure: link to pdf-file, datasheet and drawing
Operating Instruction*: link to pdf-file operating instructions
* in case of accessories: link to selection tables
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Cable plug 3-pin M8x1 angular, KST-3-W-8-D-5
product features
3
Cast
000006509017
60V
max. 3mOhm
angular
Plug
0.34mm2
IP67
3000
M8x1
