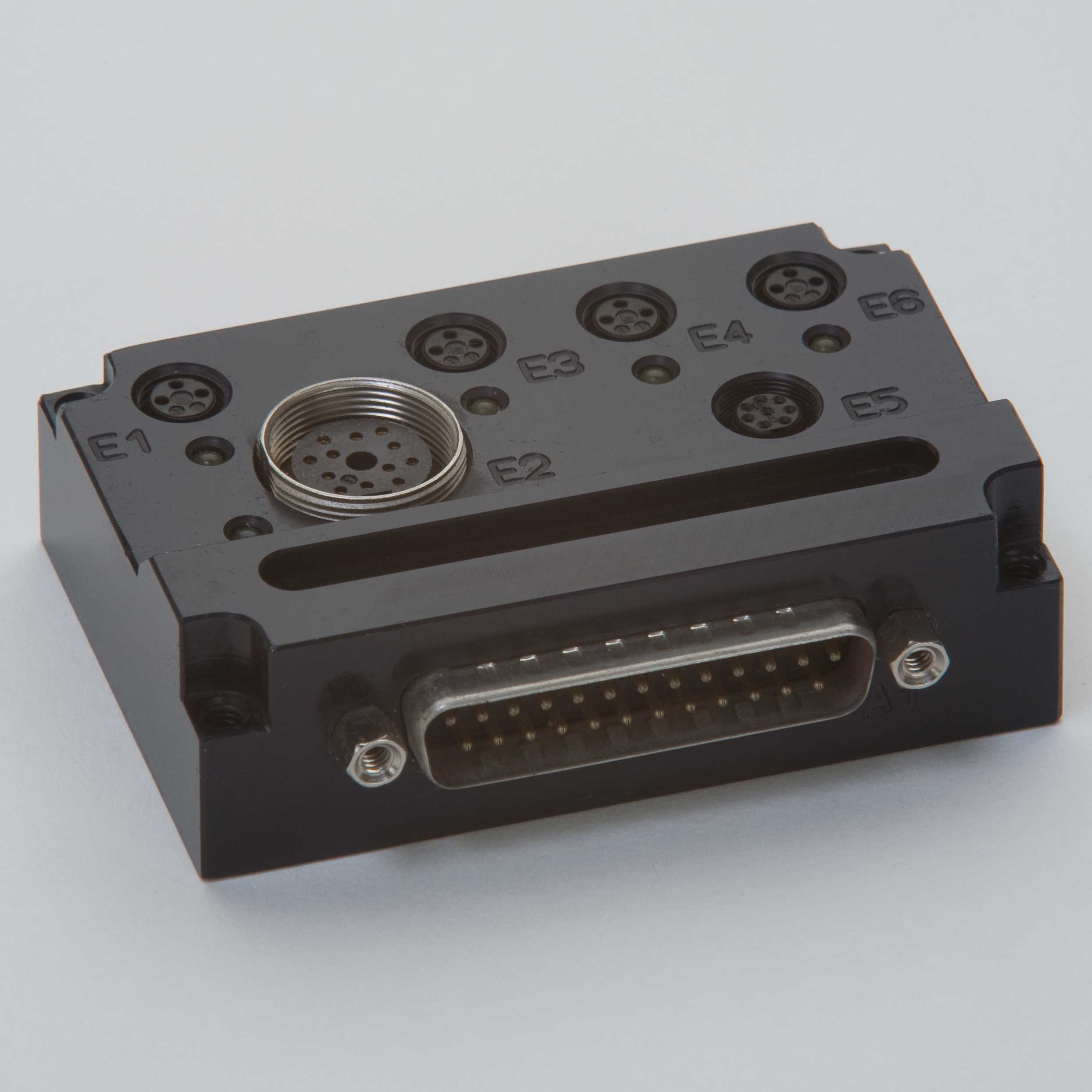

Multiway connector STL-8-E43-E18-E112-A25
Article number: 000000001833
Manufacturer: Friedemann Wagner GmbH
- encapsulated terminal strip
- robust aluminum housing
- compact design
- structured signal acquisition
- 4x3-pin input
- 1x8-pin input
- 1x12-pin input
- 1x25-pin output (Sub-D)
- can also be used independently of Wagner modules
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Multiway connector STL-8-E43-E18-E112-A25
Technical Information
| Number of Outputs | 1x25pin Sub-D |
| Number of Inputs | 4x3pin/1x8pin/1x12pin |
| Article Number | 1833 |
| Operating Voltage | 10-30VDC / PNP |
| Own Current Consumption | less than 100mA |
| Weight [kg] | 0.15 |
| Isolation Voltage | 75V DC |
| Contact | Ni+ 0.8um Au |
| Protection Class | IP65 |
| Current Load Capacity total | 4.0A |
| Ambient Temperature | -25°C ..+70°C |
| Material Housing | AlMgSi 1 anodized |
