changing stop-position of Wagner linear slide LSK-4

Can position of stop-system be changed at linear slide LSK-4?

our extremely compact linearslides type LSK-4 are fitted with our cross roller bearings .
Why? Precise handling of load (momentum) at slim product-sizes.

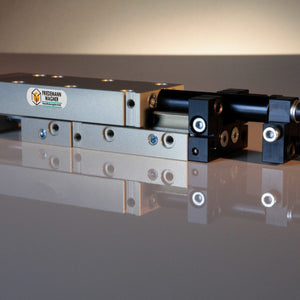

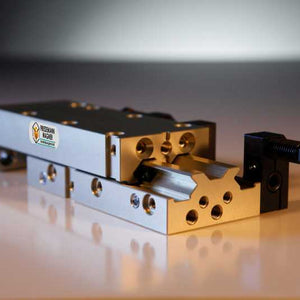

Linear units LSK-4 can be ordered with sideways mounted stop-system (layout "SK") or frontal stop-systems (layout "HK").

Keep in mind:  Conversion is possible!
If ordering a conversion-kit, the used layout can be changed by the customer e.g. from SK to HK.
That keeps your invest and enables you to use the existing linear slide in another application.

If you intend to move the single sided stop positions (layout SK), this only is possible for one side of stop element (see operating-instructions).

In this case you need an additional stop-block (accessoiries) - as the double acting system is canceled when deviding the elements .

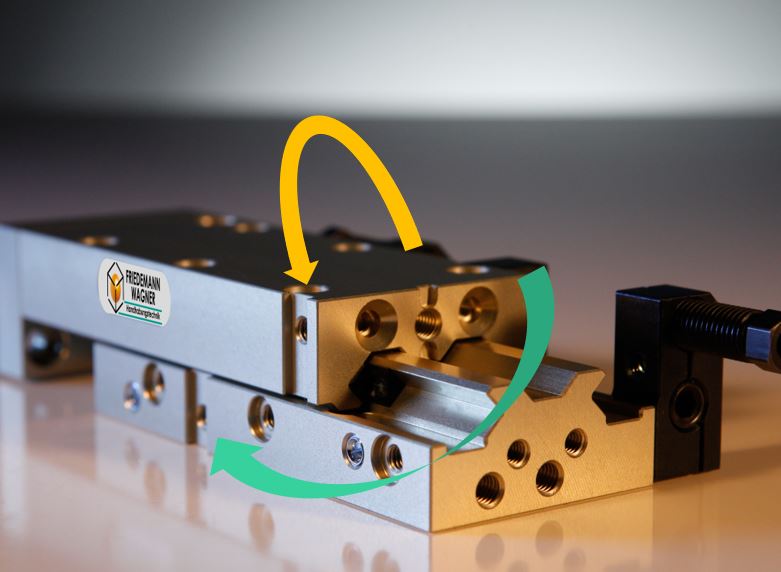

This block will be assembled to the "fix" part of the slide (housing LSK-4, see green arrow). The socket for the stop-screw and the damper switches to the moving "head" of LSK-4 (orange arrow) - operating when slide is "extended" .

A complete reflection of stop-pelements  as like LSK-6 was impossible due to constructional reasons.
Nut and threaded holes do e.g. collide with internal air-grommets
