circuit timing RSE-6 and RSE-9 - overview-table

What switching time can we achive by RSE-6 or RSE-9 within a minute ?

Basically all pneumatic driven rotary indexers of Wagner do have an integrated restrictor - enabling you to adjust turning speed of the table.
Workload, flying around due to acceleration- or stop-processes should be avoided.
When optimising cycles, it is interesting to know the possible "speed" of RSE-6 / RSE-9 at maximum load.

Keep in mind: With an increase of the number of partitions, the turning angle decreases. As the length of the needed piston movement (distance) gets shorter - circuit time does the same!

Example:
Partition 4 means: the piston-rod has to move all the distance until an angle of 90° is done. In case of partition 12, the distance is shorter - as only 30° turning is needed.

In our brochure you´ll find a range of 40-110 circuit timings / min.
In the operating instructions you can identify the basic formula.

The table below gives a fast overview.

Please remind, partitions above 18 only can be done with RSE-9.

	circuit timing per min.	timing in seconds	circuit timing per min.	timing in seconds
partition	RSE-6		RSE-9
4	50	1.2	40	1,5
5	54	1.11	44	1,4
6	58	1.03	48	1,25
7	62	0.97	52	1,15
8	66	0.91	56	1,07
9	70	0.86	60	1
10	74	0.81	64	0,94
11	78	0.77	68	0,88
12	82	0.73	72	0,83
13	86	0.7	76	0,79
14	90	0.67	80	0,75
15	94	0.64	84	0,71
16	98	0.61	88	0,68
17	102	0.59	92	0,65
18	106	0.57	96	0,62
19	-	-	100	0,6
20	-	-	104	0,57
21	-	-	108	0,55
22	-	.	110*	0.55
23	-	-	110*	0.55
24	-	-	110*	0.55
* from this point, more cycles are possible (in theory by calculation). Due to breaking- / stopping- process of the load (hydraulic damper) the difference in reality is negligible!

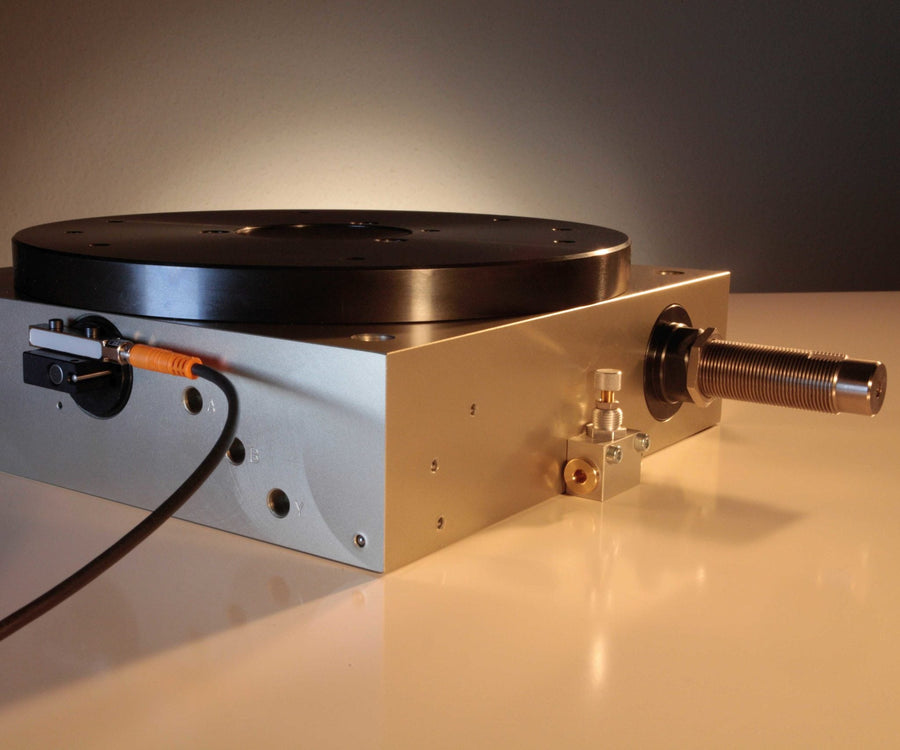

Rundschalteinheit-RSE-9-R-L-H-NSIwVZ2Cl0x7qx1t
