Compact multiway connectors to reduce wiring complexity

Increasing sensor technology in the field also rises costs and effort in wiring.

Passive multiway connectors of Friedemann Wagner GmbH are already in the scope of delivery of some handling modules. From now on they can be ordered stand-alone.

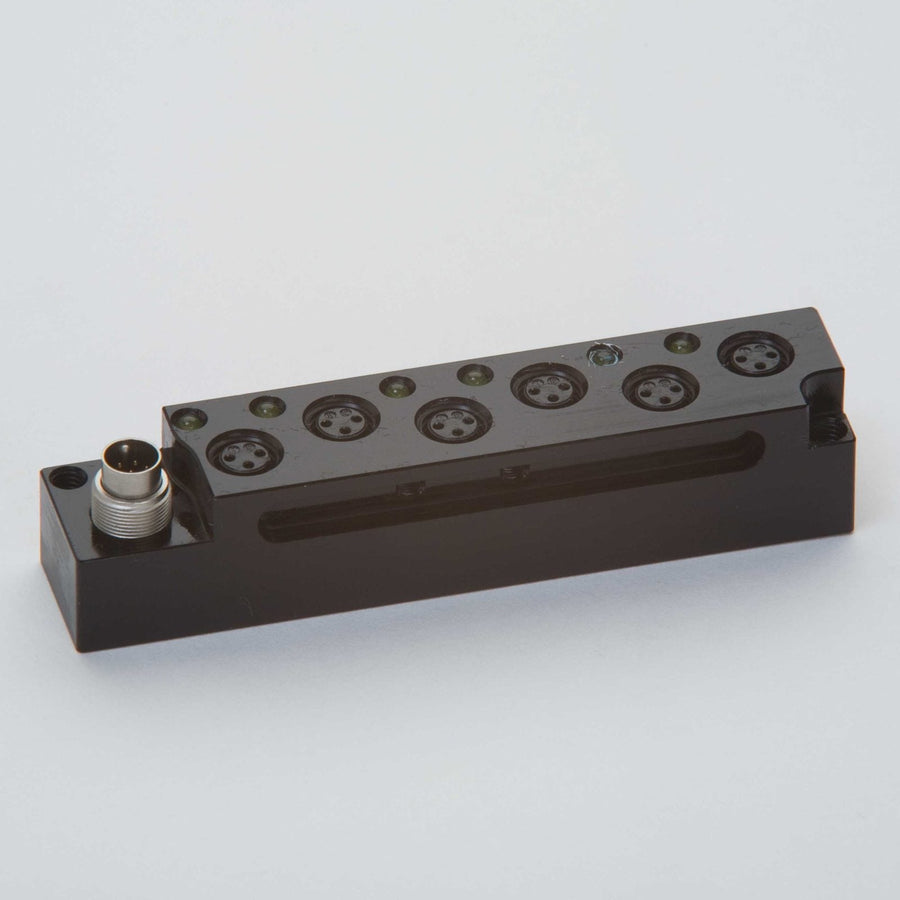

The small sensor-actor-boxes are grouted in a robust housing of aluminium (IP65) and are available in different variants (input/output combinations).
Common connectors can be plugged (M8, M9, M16 and Sub-D).

Cables now can be collected in the terminal-plug and then routed to the cabinet instead of laying the tracks peer to peer – helping to gain a fast, structured wiring.

Power and signal LEDs as well as overload- and shortcircuit-protection are onboard.

catalogue – overview multiway connectors
