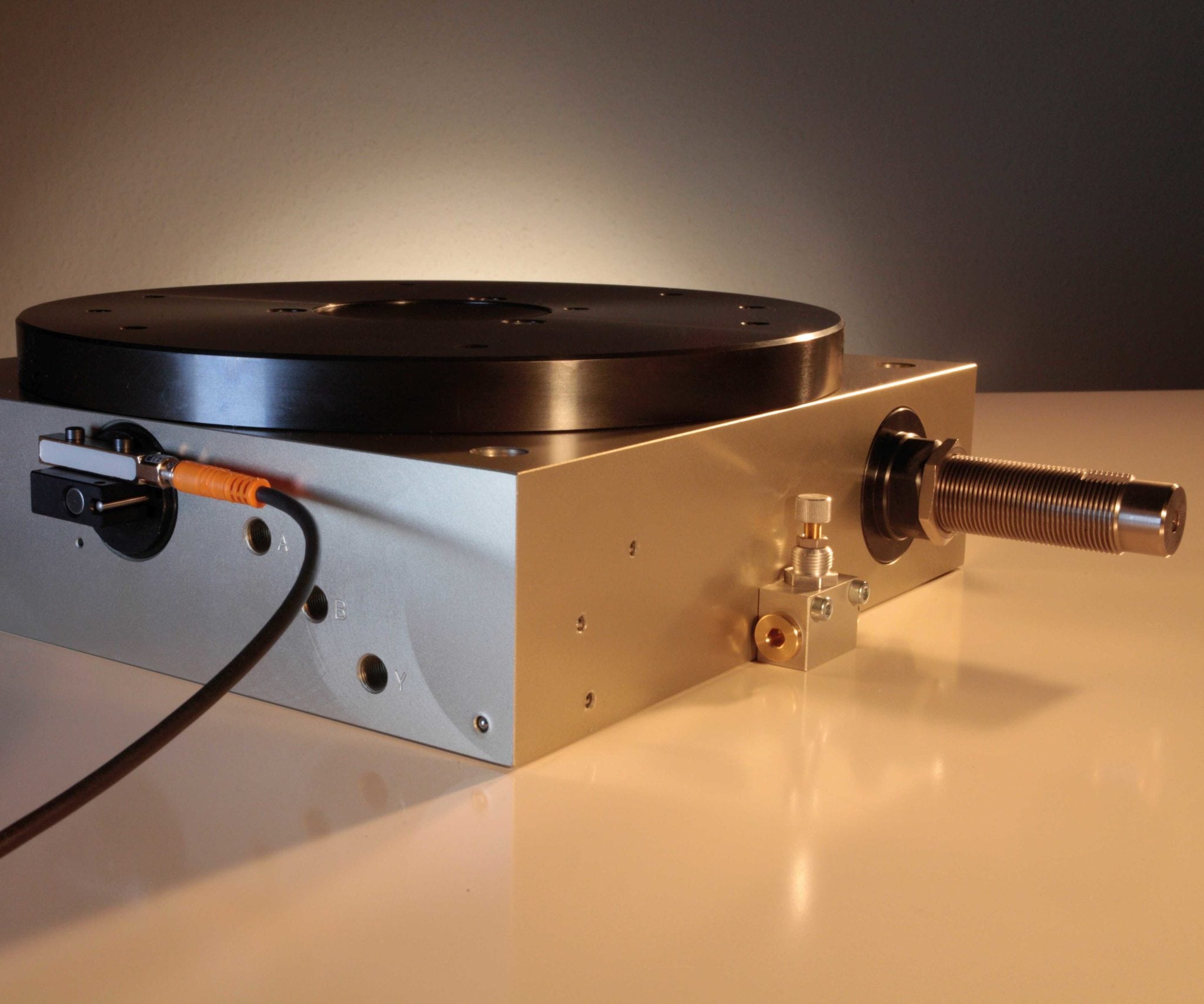

Rotary Indexing Table RSE-6-L-17-P-0-0-P, partition 17
Article number: 000000170117
Manufacturer: Friedemann Wagner GmbH
counterclockwise
partition 17 | 21,17°
integrated throttle
piston diameter 32 mm
pneumatic dampers single-sided
monitoring of locking status possible
- Pneumatic rotary indexing table
- Throttle for adjusting plate speed
- Counter-clockwise rotation
- Controllable via 1 valve
- Low-wear end position cushioning via air cushion, adjustable
- Fixed central bore
- Screw-in column with clamping block for central bore available as accessory
- Lateral locking, therefore odd divisions possible
- Lateral locking mechanism can be queried
- Technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Rotary Indexing Table RSE-6-L-17-P-0-0-P, partition 17
Technical Information
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 170117 |
| Clamping Weight max [kg] | 25 |
| Axial Load stat. Compression [N] | 20000.0 |
| Axial Load dynamic [N] | 250 |
| Damping | Pneumatic |
| Torque Absorption locked [Nm] | 27.5 |
| Torque at 6 bar eff. [Nm] | 12.0 |
| Torque at 6 bar theo. [Nm] | 16.0 |
| Direction of Rotation | Left |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | G1/8 |
| Mounting Position | horizontal |
| Weight [kg] | 8.5 |
| Tilting Moment max [Nm] | 230 |
| Air Consumption per Cycle [cm³] | 76.4 |
| Mass Moment of Inertia max [kgcm²] | 405 |
| Face Runout Disc [mm] | 0.03 |
| Plane Parallelism Hous./Disc [mm] | 0.05 |
| Lateral Force Absorption stat [kN] | 0.6 |
| Concentricity Centre Bore [mm] | 0,03 |
| Cycle Rate / min | 50-110 |
| Pitch | 17 |
| Pitch Accuracy [mm] | +/-0.03mm @D 120mm |
| Material Housing | High-strength Al, anodized |
| Material Disc | Steel burnished |
| Material Rack | ETG-100 |
