Adapter plate APL-6-LEM
Article number: 001804000151
Manufacturer: Friedemann Wagner GmbH
Product Class: VBW
Design Size: 6
Product name: Adaptor Plate APL-6-LEM,incl. 2xZR-6

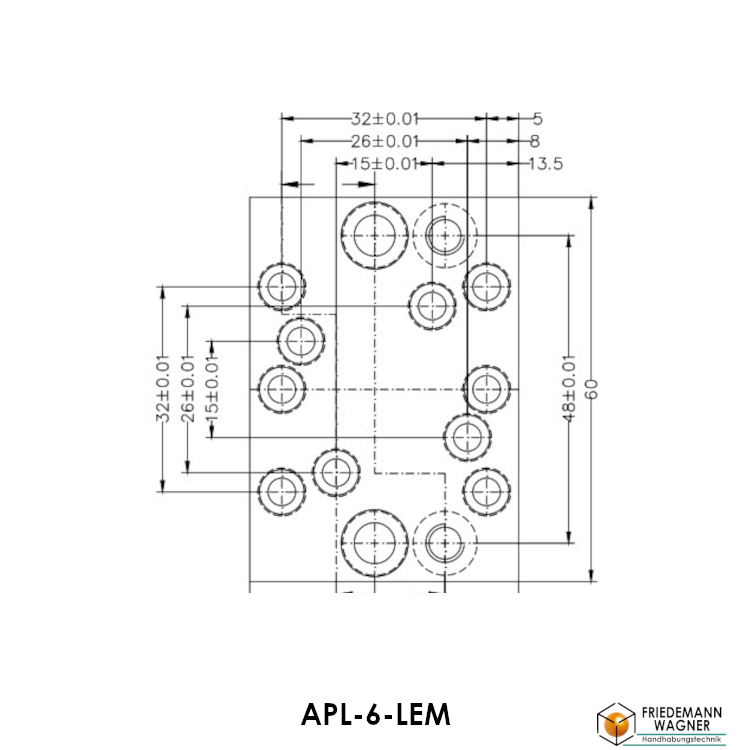

adapter plate for quick, backlash-free assembly ✓ e.g. for slide LEM ✓ for adaptation to customer applications ✓ for modular system from Friedemann Wagner GmbH ✓ size 6 (grid dimension 48mm x 48mm) ✓ various versions see technical drawing in the brochure ✓ incl. 2xZR-6
Brochure: link to pdf-file, datasheet and drawing
Operating Instruction*: link to pdf-file operating instructions
* in case of accessories: link to selection tables
Technical Data :
Technical data and diagrams are non-binding and for guidance only.
All informations are valid at 6 bar pressure, air consumption is valid at 1 bar.
Technica data and constructions subject to change without prior notice.
All information without engagement.
Product pictures:
Picture may differ from original product.
