Connection Plate VPL-6
Article number: 001804000128
Manufacturer: Friedemann Wagner GmbH
Product Class: VPL_RPL_VBS
Design Size: VPL-6
Product name: Connection Plate VPL-6, incl. 2xZR-6

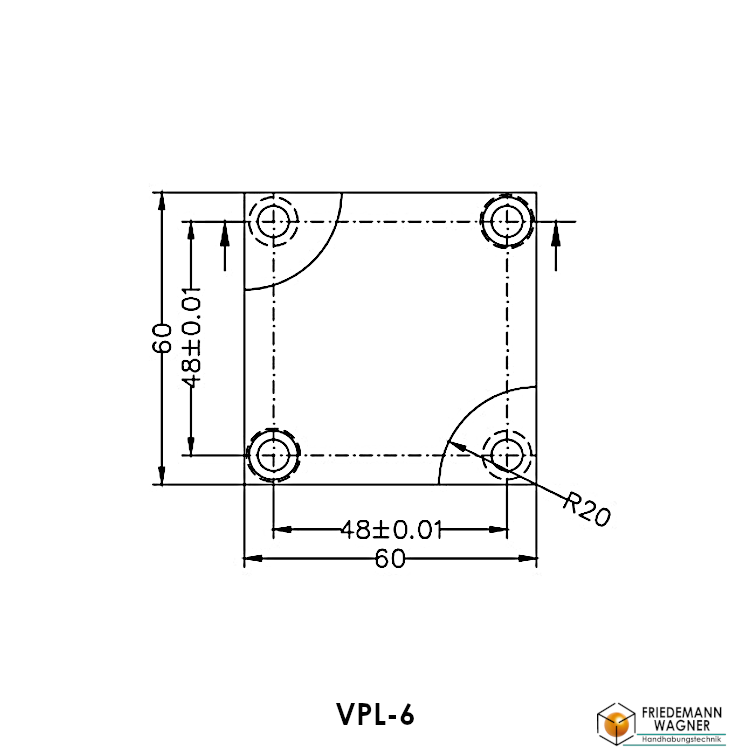

plate for quick, backlash-free assembly ✓ for modular system by Friedemann Wagner GmbH ✓ for joining e.g. two linear slides of size 6 (grid dimension 48mm x48mm) ✓ incl. 2xZR-6
Brochure: link to pdf-file, datasheet and drawing
Operating Instruction*: link to pdf-file operating instructions
* in case of accessories: link to selection tables
Technical Data :
Technical data and diagrams are non-binding and for guidance only.
All informations are valid at 6 bar pressure, air consumption is valid at 1 bar.
Technica data and constructions subject to change without prior notice.
All information without engagement.
Product pictures:
Picture may differ from original product.
