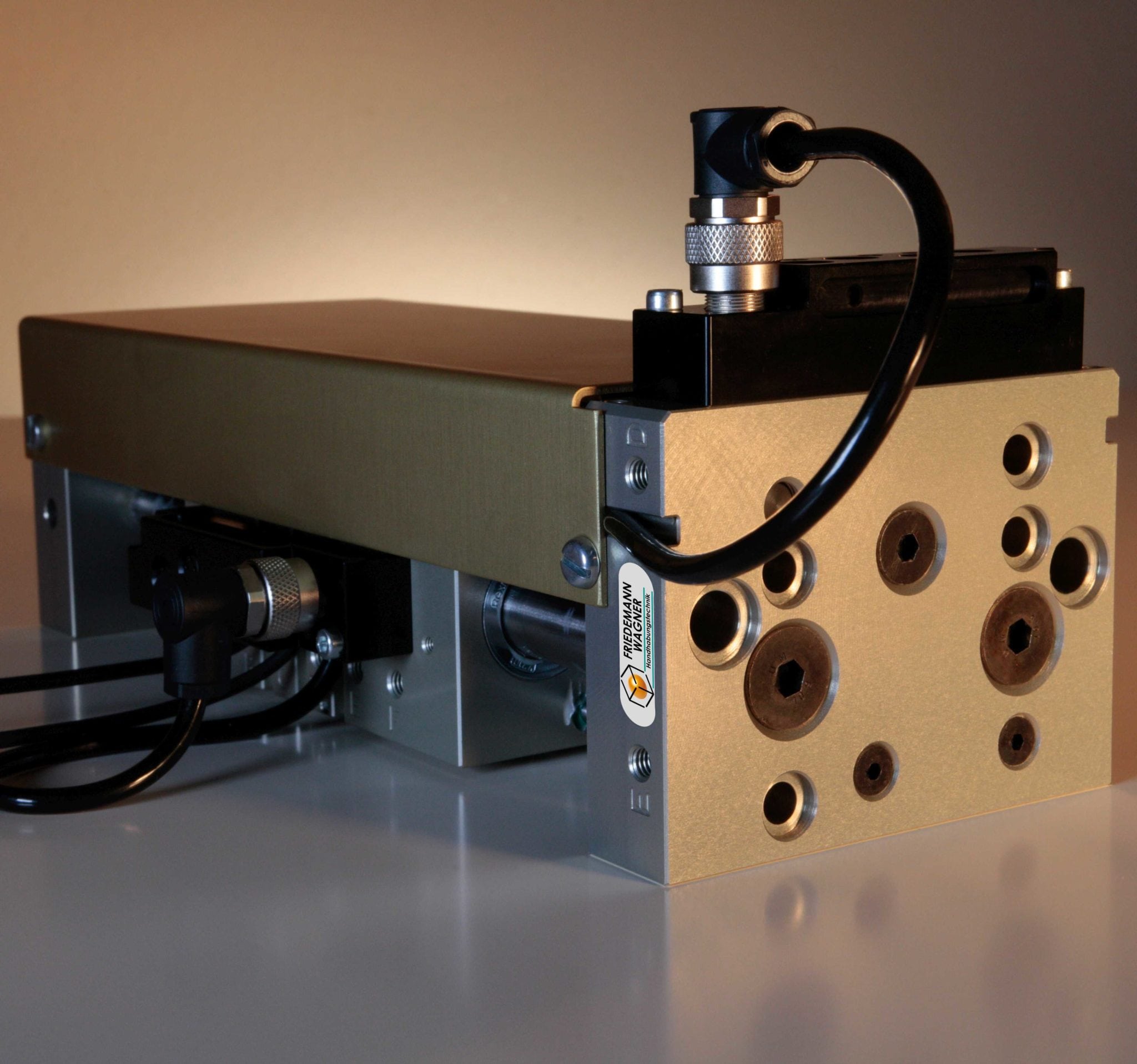

Linear Unit VEN-6-I-180-H-4-0-P with hydr. damper
Article number: 000000150213
Manufacturer: Friedemann Wagner GmbH
element of modular pick & place system
stroke 180 mm
adjustable stroke
piston-diameter 20 mm
hydraulic dampers both-sided
4-fold air grommet
- Pick & Place module
- "Stand-alone" use (cover plate VSP-6-VEN in accessories)
- pneumatic linear unit with sheet metal cover
- with air feed-through
- Repeat accuracy +/- 0.02mm
- hydraulic damping + sensors included in scope of delivery
- technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Linear Unit VEN-6-I-180-H-4-0-P with hydr. damper
Technical Information
| Cover | Yes |
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 150213 |
| Damping | Hydraulic |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | M5 |
| Adjustment Range [mm] | 14 and 34 |
| Weight [kg] | 3.7 |
| Stroke [mm] | 180 |
| Bearing Type | Ball bushing sealed |
| Air Consumption per Cycle [cm³] | 113.0 |
| Retraction Force at 6 bar [N] | 85 |
| Impact Force at 6 bar [N] | 150 |
| Maximum Load Capacity [kg] | 9.0 |
| Material Stops | Steel |
| Material Housing | High-strength Al, anodized |
