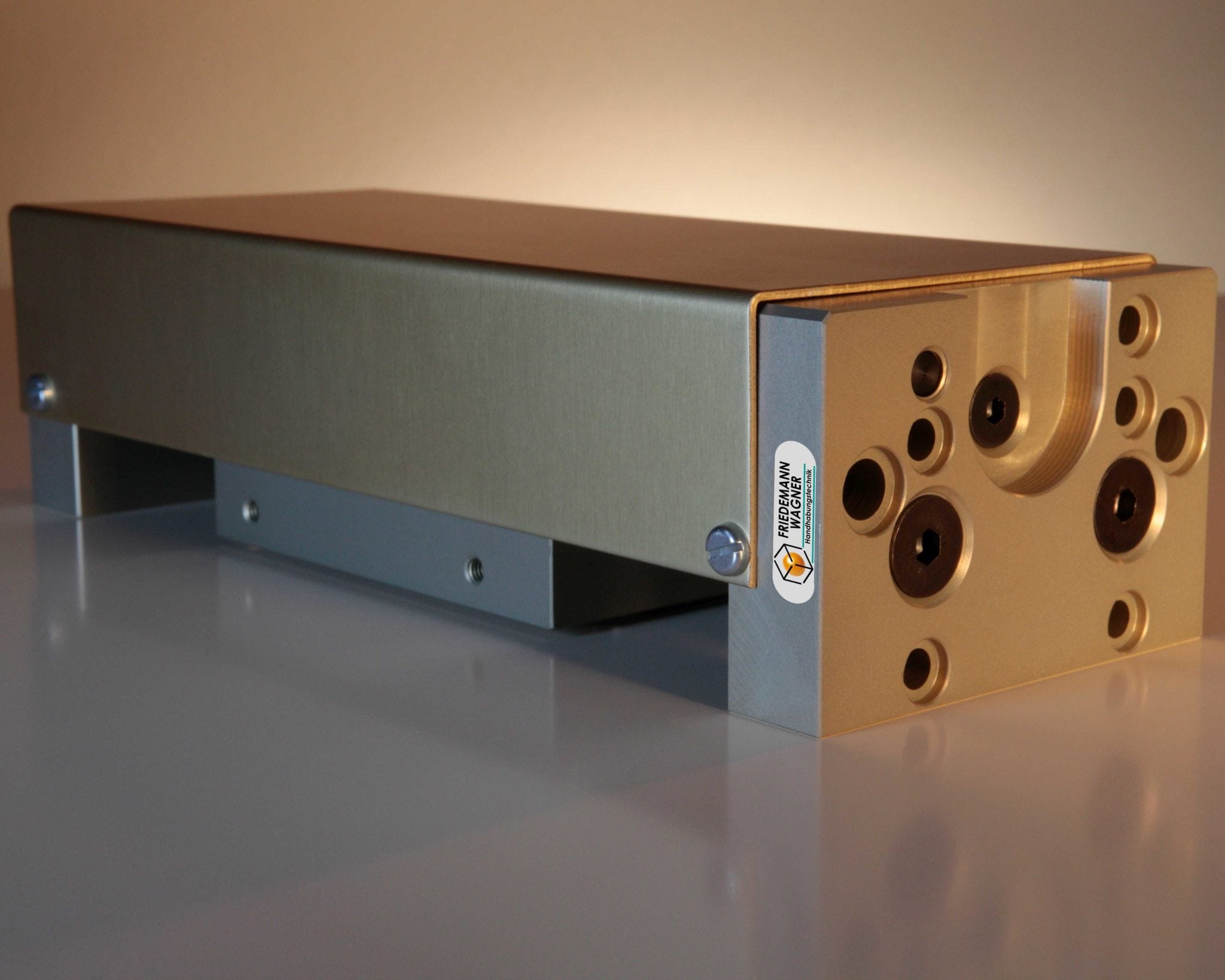

Linear Unit VEN-6-B-60-H-0-0-P with hydr. damper
Article number: 000000150101
Manufacturer: Friedemann Wagner GmbH
Product Class: LE
Design Size: VEN-6
Product name: Linear Unit VEN-6-B-60-H-0-0-P with hydr. damper
pick & place modular system ✓ pneumatic linear unit with sheet metal cover ✓ vertical or horizontal operation ✓ 60mm stroke ✓ basic version ✓ without air and signal grommet ✓ repeatability +/- 0.02mm ✓ hydraulic damping + sensors included ✓ see technical data below
Brochure: link to pdf-file, datasheet and drawing
Operating Instruction*: link to pdf-file operating instructions
* in case of accessories: link to selection tables
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Linear Unit VEN-6-B-60-H-0-0-P with hydr. damper
product features
True
4/2 or 5/2 way valve bistable
000000150101
Hydraulic
4-8 bars
M5
14 and 34
2.2
60
Ball bushing sealed
37.7
85
150
11.0
Steel
High-strength Al, anodized
