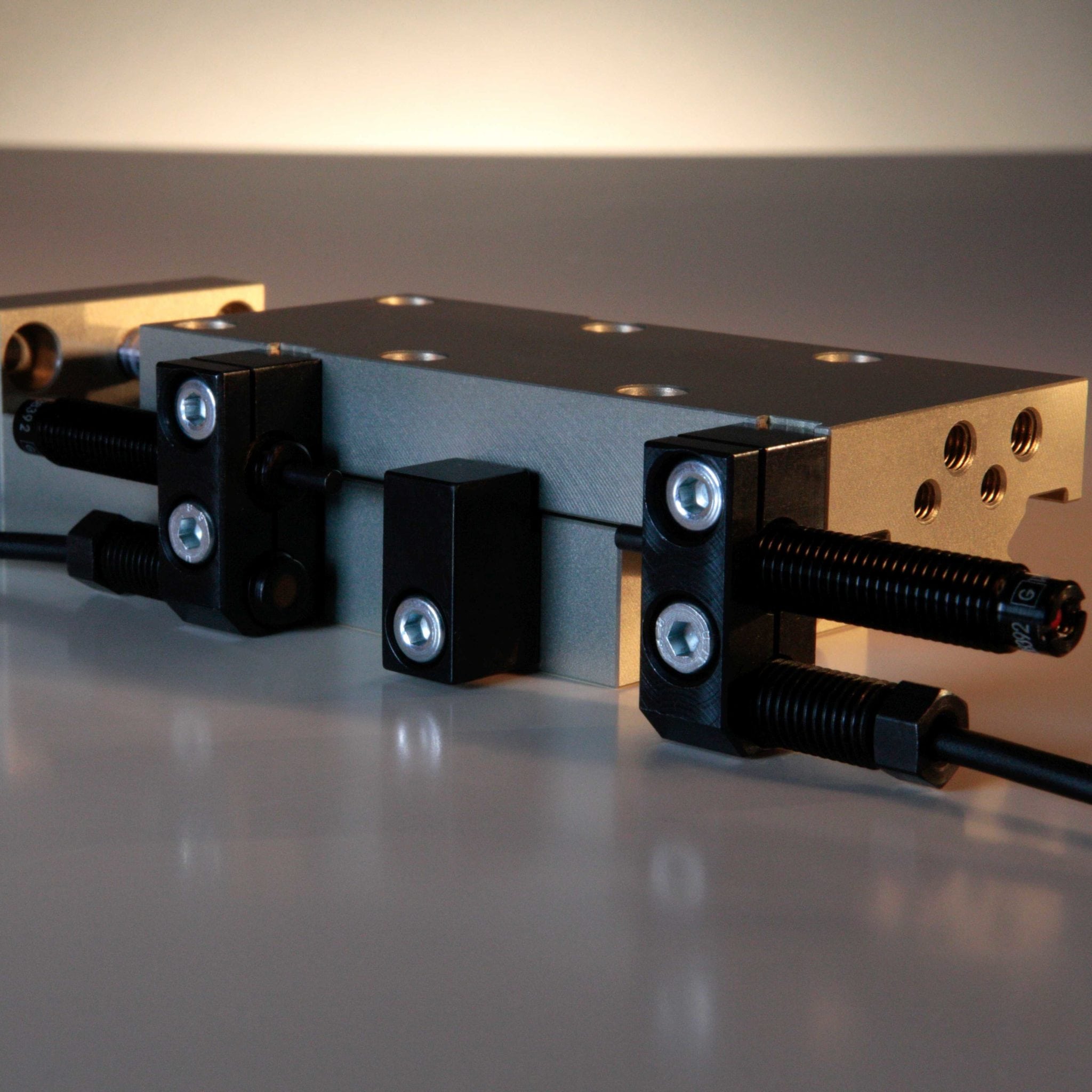

Linear Unit LSK-4-SK-45-H-0-0-P stop system sideways, dampers
Article number: 000000195113
Manufacturer: Friedemann Wagner GmbH
stroke 45 mm
adjustable stroke
piston diameter 12 mm
hydraulic dampers both-sided
end-position monitoring possible
- Pneumatic linear slide
- fixed stops
- stops can be mounted on the other side
- hollow stop screws for space-saving sensor mounting
- crossed roller guidesfor absorbing high moments
- own crossed roller guides allow larger rollers
- repeat accuracy +/- 0.01mm
- technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Linear Unit LSK-4-SK-45-H-0-0-P stop system sideways, dampers
Technical Information
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 195113 |
| Damping | Hydraulic |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | M5 |
| Adjustment Range [mm] | 14 both sides |
| Weight [kg] | 0.62 |
| Stroke [mm] | 45 |
| Bearing Type | Cross roller guide |
| Air Consumption per Cycle [cm³] | 10.2 |
| Retraction Force at 6 bar [N] | 33 |
| Impact Force at 6 bar [N] | 45 |
| Maximum Load Capacity [kg] | 3.0 |
| Material Stops | Hardened steel |
| Material Stop Screws | Hardened steel |
| Material Housing | High-strength Al, anodized |
