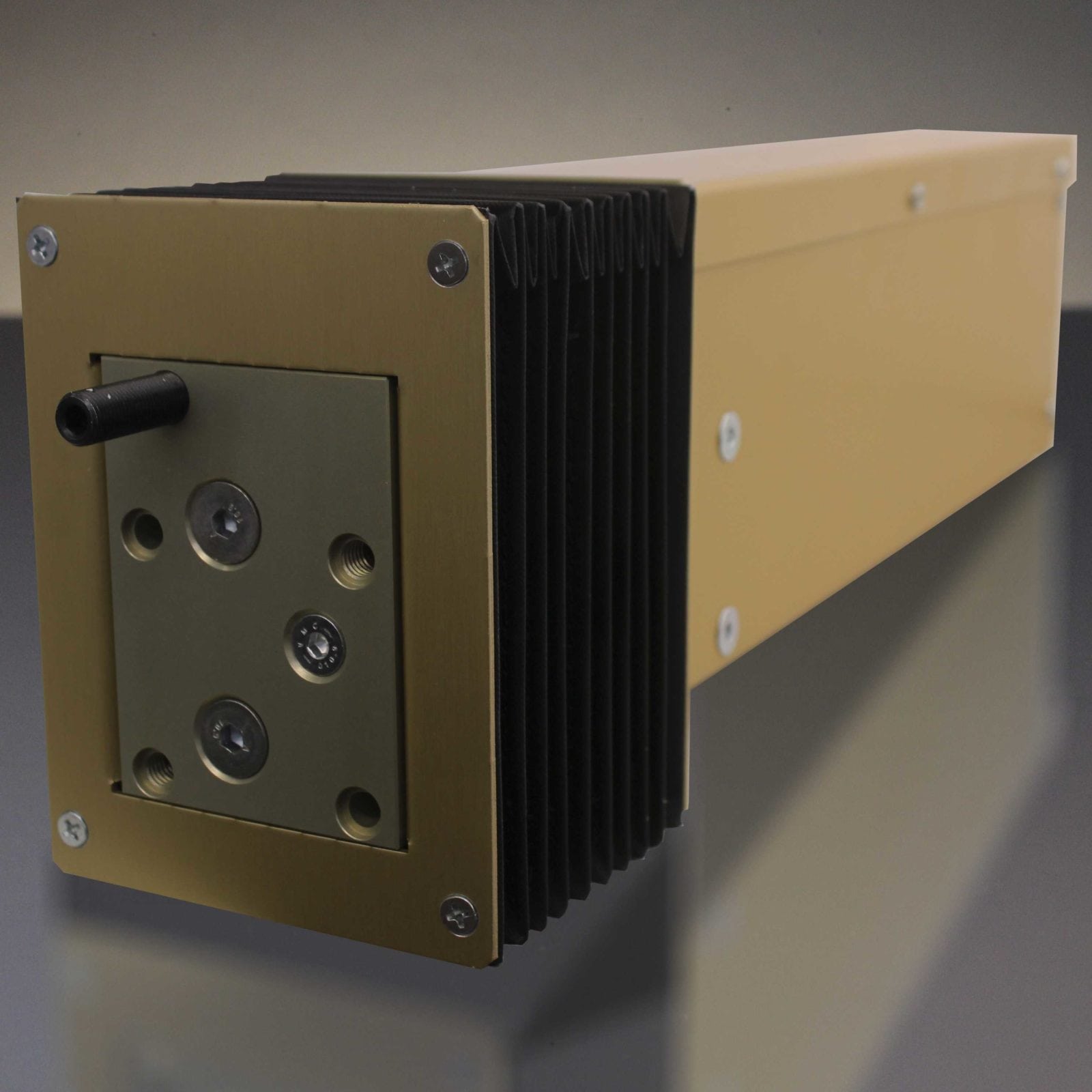

Linear Unit LES-9-SA-200-H-0-0-P w. hydr. dampers & cover
Article number: 000000105512
Manufacturer: Friedemann Wagner GmbH
stroke 200 mm
adjustable stroke
piston diameter 32 mm
hydraulic dampers both-sided
end-position monitoring possible
- Pneumatic linear unit with damper
- Fixed stops
- Sealed ball bushing
- For gantry or sliding operation
- Repeatability +/- 0.02mm
- With sheet metal cover + bellows
- Technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Linear Unit LES-9-SA-200-H-0-0-P w. hydr. dampers & cover
Technical Information
| Cover | Yes |
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 105512 |
| Damping | Hydraulic |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | G1/8 |
| Adjustment Range [mm] | 55 both sides |
| Weight [kg] | 10.3 |
| Stroke [mm] | 200 |
| Bearing Type | Super ball bushing sealed |
| Air Consumption per Cycle [cm³] | 322.0 |
| Retraction Force at 6 bar [N] | 340 |
| Impact Force at 6 bar [N] | 380 |
| Maximum Load Capacity [kg] | 42.0 |
| Material Stops | Steel |
| Material Housing | High-strength Al, anodized |
