Lifting Unit HE-9-N-25-H-0-0-P with dampers
Article number: 000000145001
Manufacturer: Friedemann Wagner GmbH
stroke 25 mm
adjustable stroke
piston diameter 2x25 mm
hydraulic dampers both-sided
end-position monitoring possible
- Powerful pneumatic lifting unit with short stroke
- 2 pistons
- Linear unit for vertical tasks
- horizontal use possible
- Stop screw is hollow and accommodates the sensor to save space
- Bearing: Guide bush with ball cage
- TAS mounted, for shock absorber reception
- Technical data see below
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.

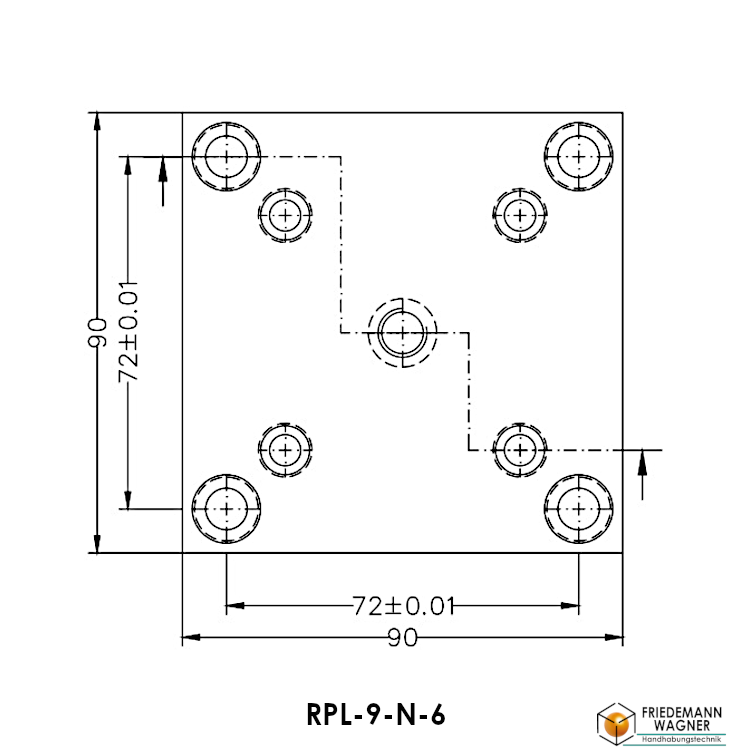

Choose options
Lifting Unit HE-9-N-25-H-0-0-P with dampers
Technical Information
| Control | 4/2 or 5/2 way valve bistable |
| Article Number | 145001 |
| Version | Normal |
| Damping | Hydraulic |
| Pressure Range | 4-8 bars |
| Compressed Air Connection | G1/8 |
| Adjustment Range [mm] | 0-25 |
| Weight [kg] | 2.3 |
| Stroke [mm] | 25 |
| Bearing Type | Guide bush with ball cage |
| Air Consumption per Cycle [cm³] | 33.0 |
| Retraction Force at 6 bar [N] | 340 |
| Impact Force at 6 bar [N] | 470 |
| Material Guide Shaft | Cf 53 hardened |
| Material Housing | High-strength Al, anodized |
