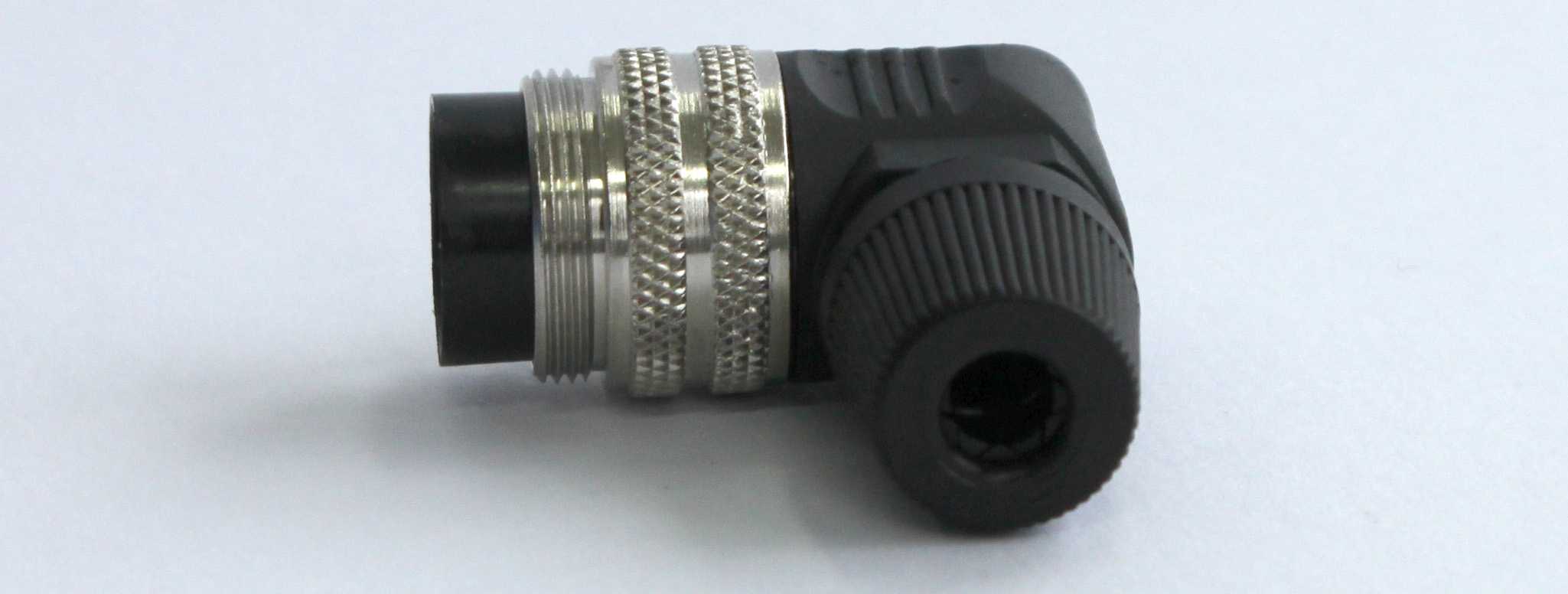

Socket 12-pin M16x0,75 angular BUC-12-W-16
Article number: 000006508019
Manufacturer: Friedemann Wagner GmbH
- Socket 12-pin
- M16x0.75
- angled
-
Accessories for Wagner modules
Technical Information: Technical data and illustrations are non-binding. All information is based on an operating pressure of 6 bar, air consumption is understood at 1 bar. We reserve the right to make changes at any time. All information is without guarantee.
Product Images: The original may differ from the product image used.
Choose options
Socket 12-pin M16x0,75 angular BUC-12-W-16
Technical Information
| Number of Cores | 12 |
| Connection Type | Solder |
| Article Number | 6508019 |
| Operating Voltage | 60V |
| Through Resistance | max. 5mOhm |
| Cable Gland | 3..6mm |
| Connector Exit | angular |
| Connector Type | Socket |
| Cross-section | 0.25mm2 |
| Protection Class | IP40 |
| Current Load Capacity [mA] | 3000 |
| Locking | M16x0.75 |
