Why swivelunits from Wagner
What are the advantages of a Friedemann Wagner swivel drive?
As a manufacturer, we have incorporated knowledge and experience from our customers' requirements into our swivel drives.
As a family business with our own design and manufacturing, we are able to successively develop and improve the swivel drive from initial models. The result is features that offer enormous benefits.
Whether it's full torque in the end positions or swivel angles adjustable from the outside - whether sensors in the stop screw or cleverly implemented air ducts into the rotating stop surface.

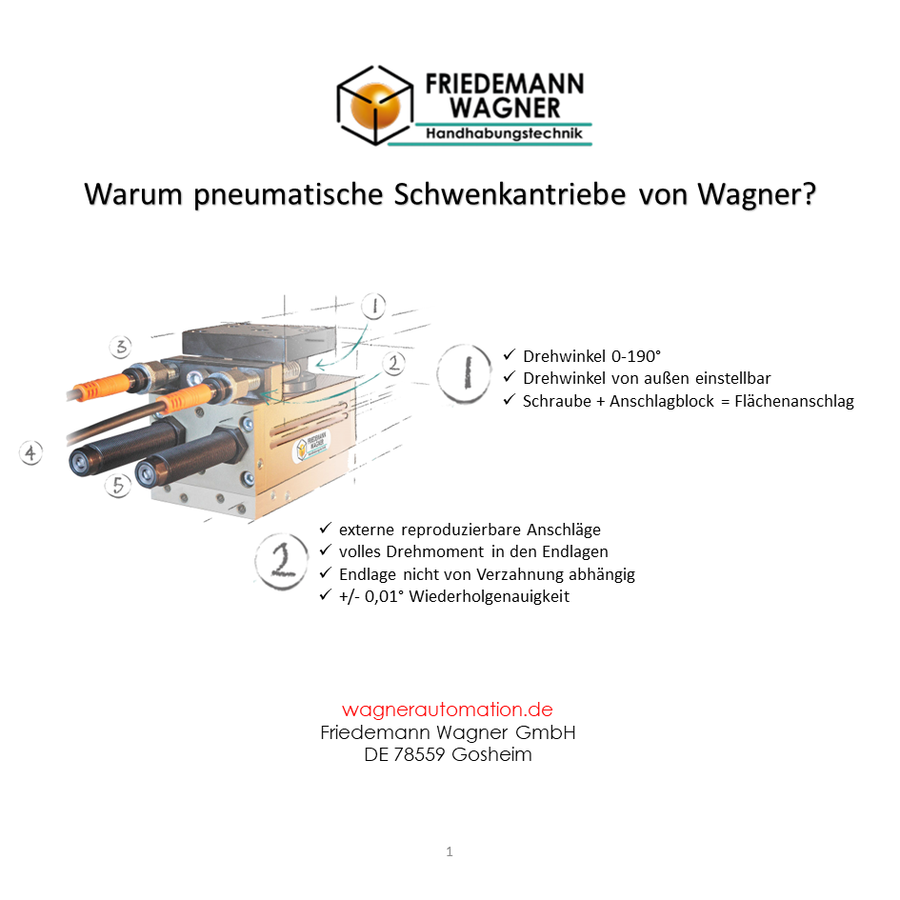

The two images attached help to identify the features described in detail below directly on the swivel drive!
▶️ Simply click on the images on the right to enlarge them! ⏩⏩⏩
1️⃣
✓ Swivel angle 0-190°
✓ Swivel angle adjustable from the outside
✓ Screw + stop block = surface stop
2️⃣
✓ external reproducible stops
✓ full torque in the end positions
✓ end position not dependent on gearing
✓ +/- 0.01° repeatability
3️⃣
✓ space-saving: sensor in stop screw
✓ stop screw + sensor are fixed with knurling

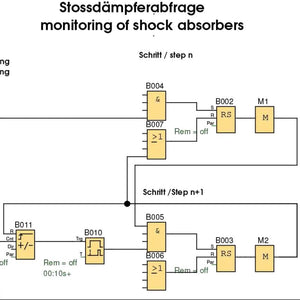

✓ shock absorber failure detection - Link to further information
4️⃣
✓ shock absorbers accessible from the outside
✓ ideal for maintenance and adjustment
✓ damper only delays, stop = screw!
✓ all interfering edges on one side
5️⃣
✓ air ducts into the rotating shaft
✓ electrical feed-through from SES-6
🎥 Technical animation of the SES-6 swivel unit:
