Rotary actuator – full torque in the end position

Full torque where it matters most!

If rotary actuators work without external stops, the last angular degrees (approx. 2-3°) before the end position are only approached with the force of a drive piston!

An open secret - can be read in the data sheet or catalog or can be indirectly recognized.
Although this is in fact a double-actuated module, conventional part-turn actuators only have about half of the nominal torque available - in the all-important end position!

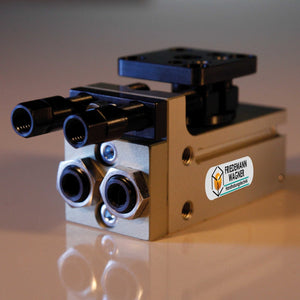

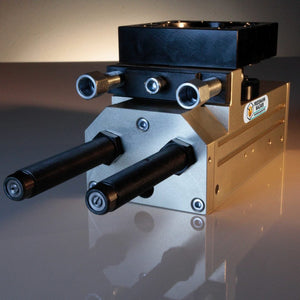

Part-turn actuators of the types SM , SE and SES from Friedemann Wagner GmbH are designed to have full torque in the end position .

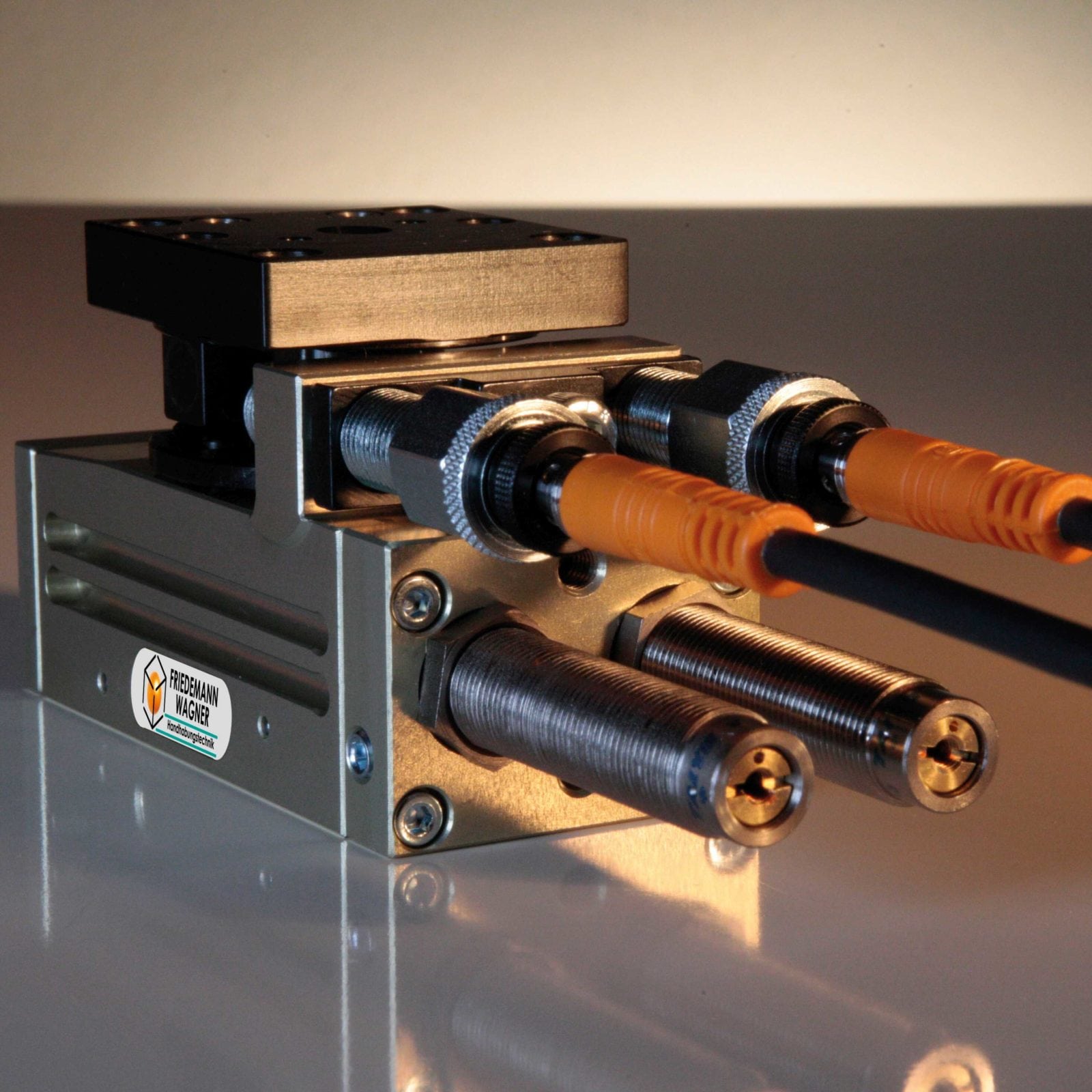

The external stop system is part of the housing. These stops ensure that the system is not dependent on gear play in its end position – as demonstrated by the remarkable repeatability of +/- 0.01°.

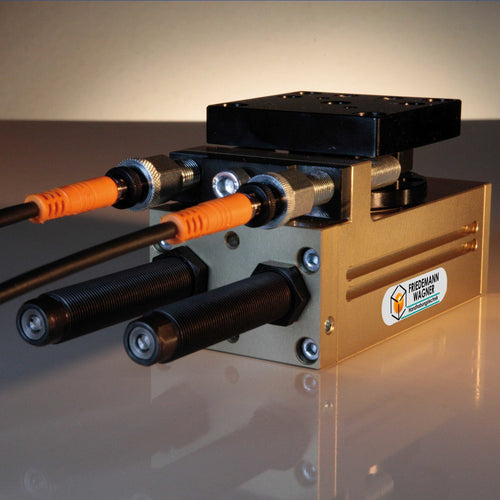

The stop screws allow the angle of rotation to be adjusted from 0-190° from the outside.
After adjustment, the position of the screws is fixed using a clamping block.

Available from stock – available on request in versions with air and signal feedthrough.
