layout "A" - linear unit with metal cover
What´s the meaning of an "A" in the layout name of Wagner-Linear-Units?
Good question! Please see: A is the first letter of the German word "Abdeckung" what simply means "cover" .
The name of the linear unit is as used to be - only extended with the letter "A".
See following table as an overview of available product families:
| module | layout with cover | cover |

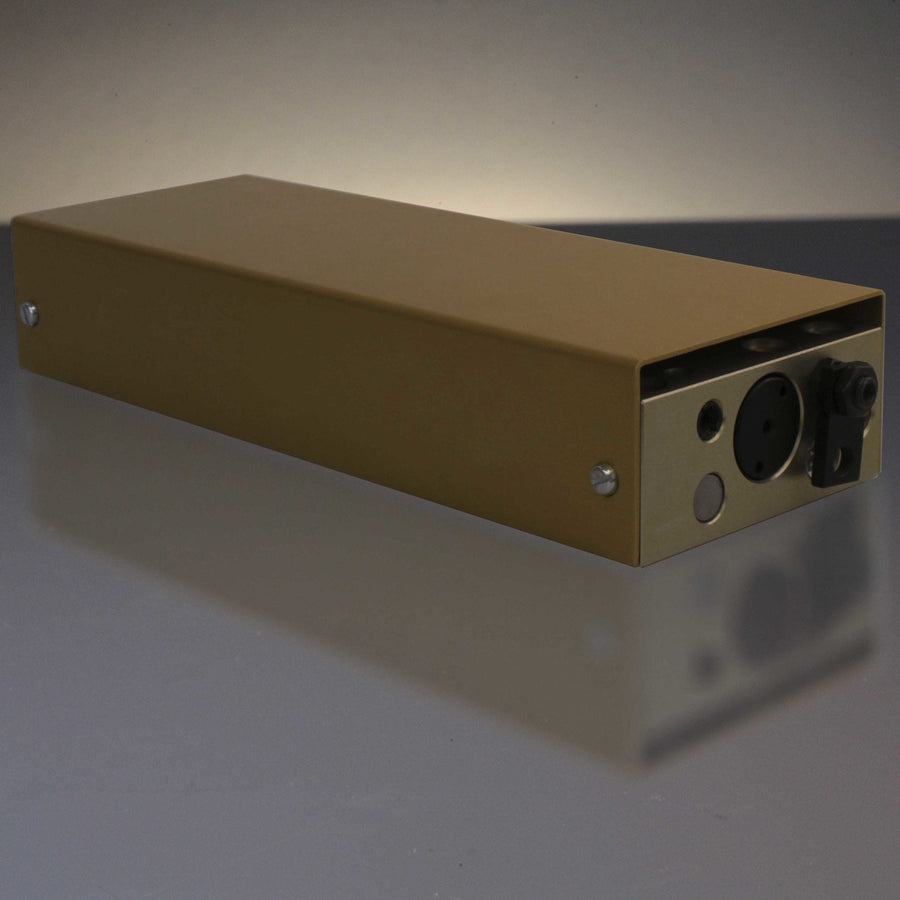

| LEM-6 | LEM-6-MA | open on one side, fixed at front panels |
| LEK-6 | LEK-6-KA | open on one side, fixed at front panels |
| LEM-9 | LEM-9-MA | open on one side, fixed at front panels |

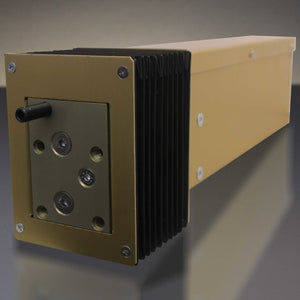

| LES-6 | LES-6-SA | fully enclosed, with bellows |
| LES-9 | LES-9-SA | fully enclosed, with bellows |
In case of the longest strokes at LES-6 (400mm) and LES-9 (500mm) the bellows reduce the stroke a bit (385mm and 489mm).
Read more
layout Z linear unit LE-6 and LE-9
double force ✓ same size ✓ linearunit for push or portal use
Read more
Layout "MS" - external stops for linearunit LEM

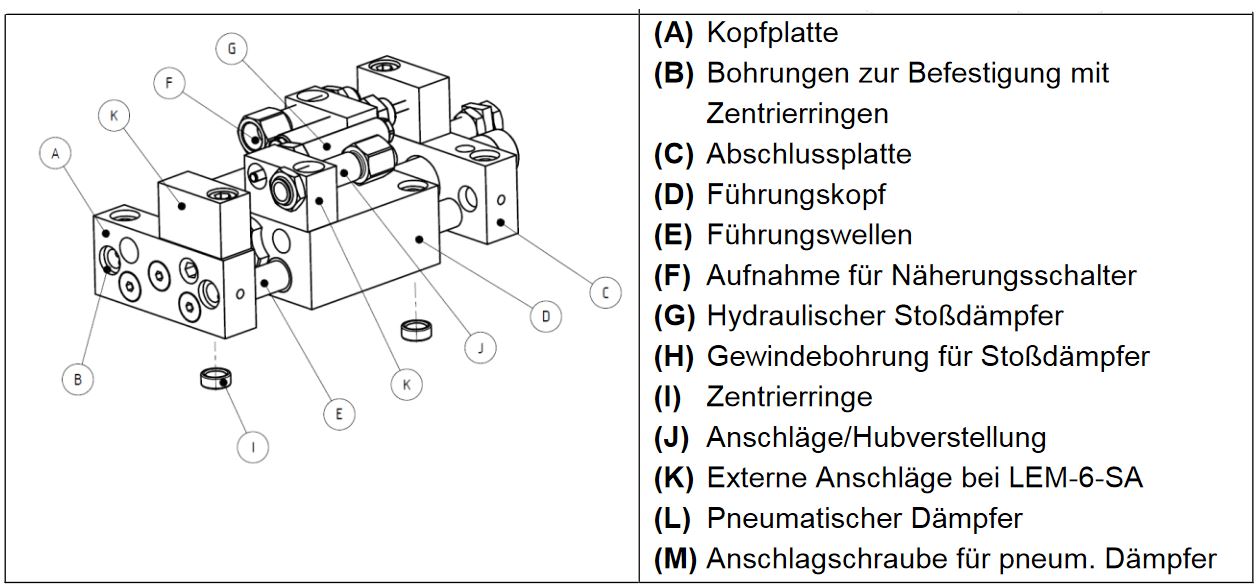

hardened external stop system ✓ for linearunit LEM ✓ better repeat accuracy ✓ easy adjustment from outside
Read more
