Compact and elaborated units in a highly practical modular system
Our products distinguish them self by precision and durability and high repeatability for intended use in automation.

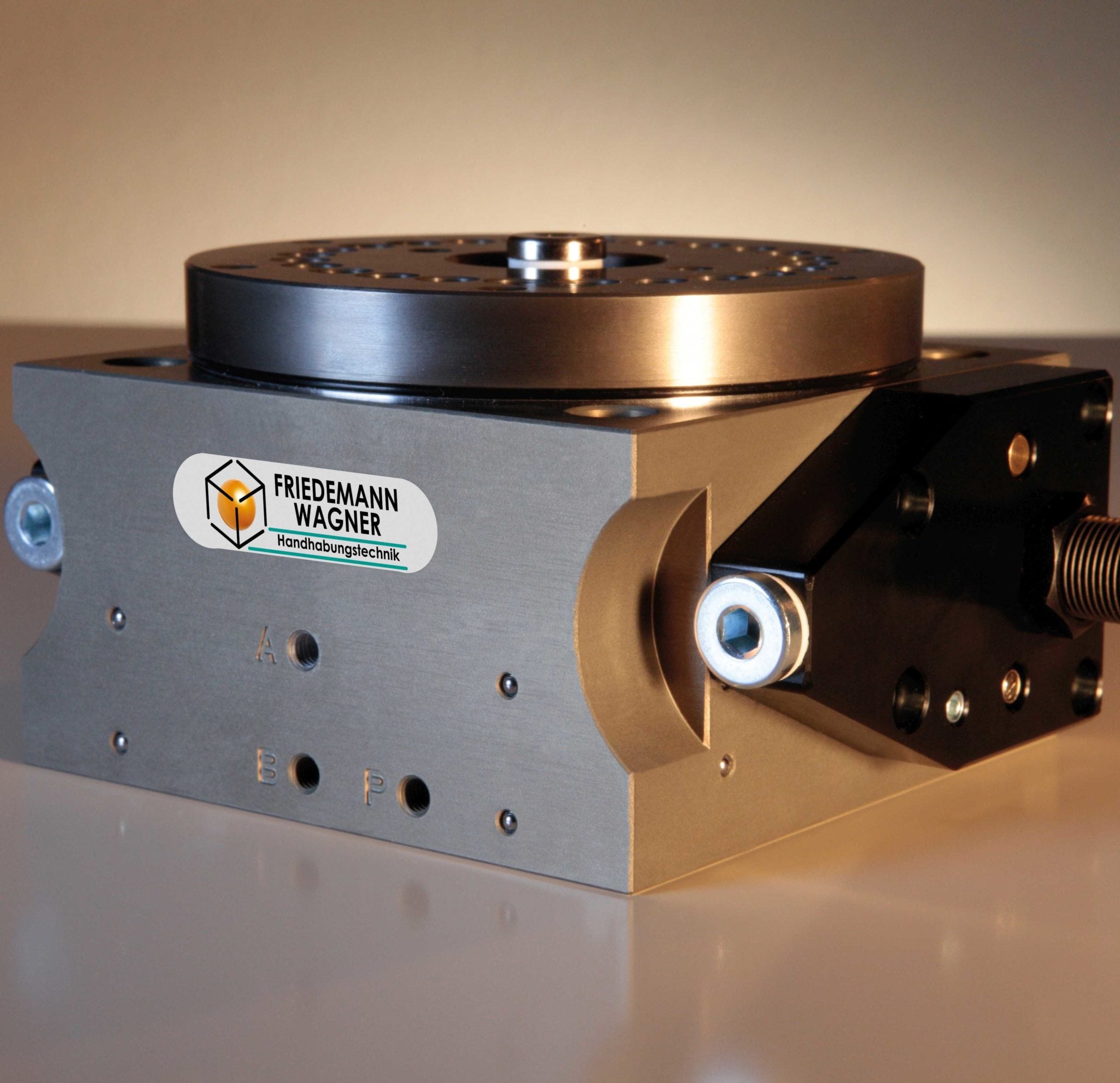

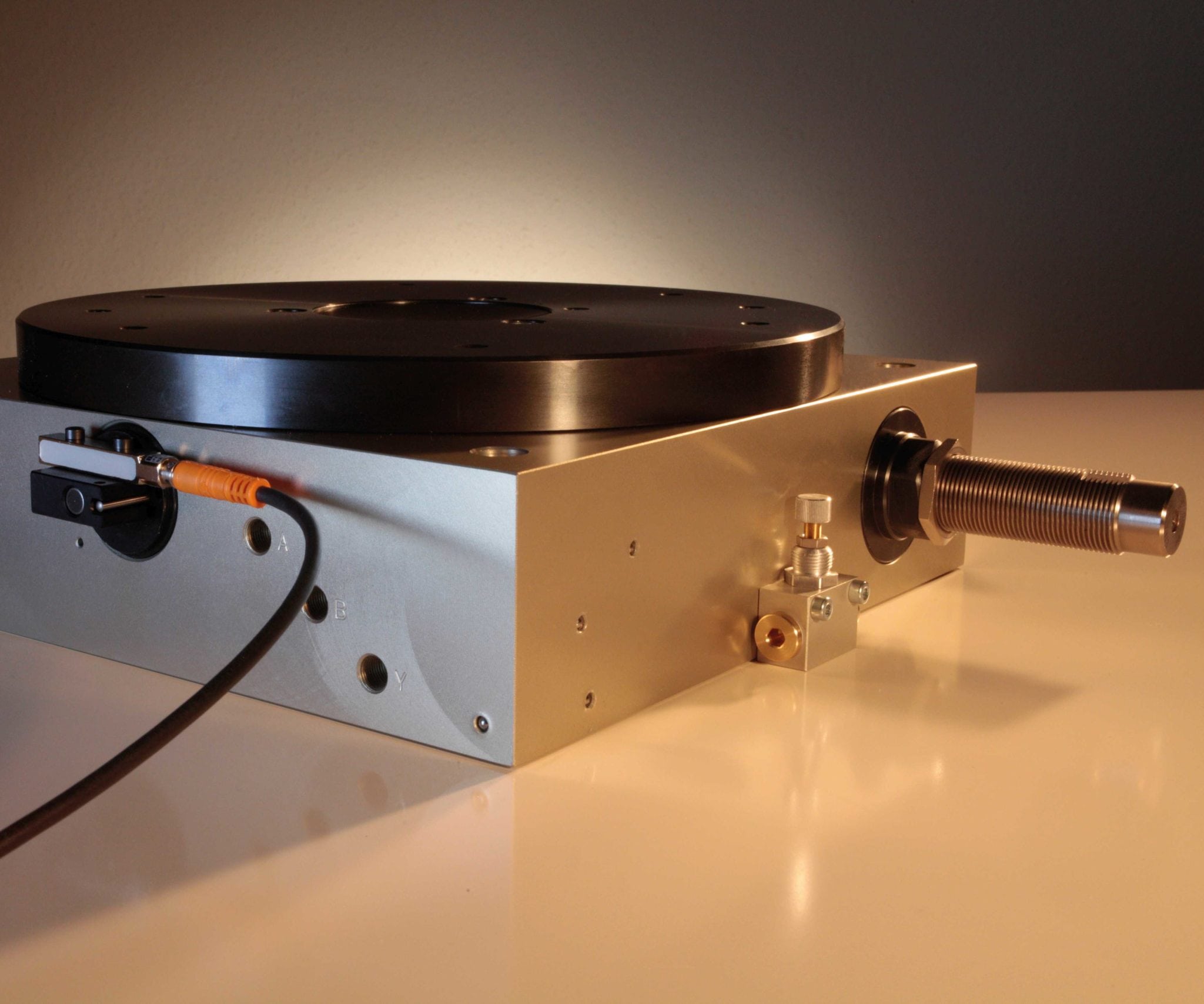

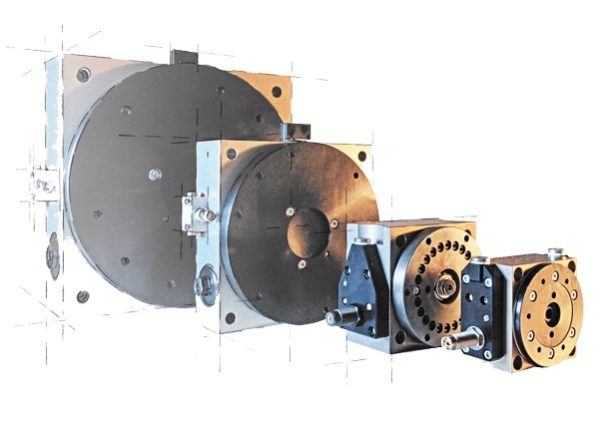

Rotary Indexing Units
- integrated throttle to adjust plate speed
- different variations and sizes up to 70 kg load and 30 Nm torque
- hydraulic damping included
- wear-free pneumatic absorbers in case of RSE-6 / RSE-9
- partitions of 2 to 24, with RSE-6 and RSE-9 odd divisions available
- direction of rotation, cw or ccw, RSE-3 and RSE 4 oscillating possible
- fitting for sensor to monitor end position
- precise, clearance free centering system for mounting without drilling or pinning
- fixed center hole as duct (for energy) or for mounting

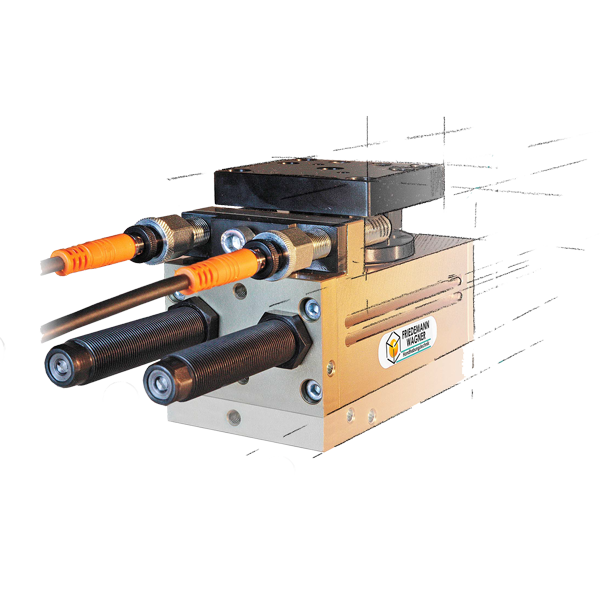

Swivel Units
- external stop-system on toroidal areas for high repeatability and for full force of the piston in the end position
- stop screws for continuous adjustment of 190°
- air and signal grommets available in different variations
- patented system for fitting the proximity switch in the stop screw
- C-slots for the mounting of magnetic field sensors
- all connections or interfering edges on one product-side
- fitting for hydraulic damper for high mass moment of inertia up to 64200 kgcm2
- grid dimensions for precise, clearance free centering system for mounting without drilling or pinning

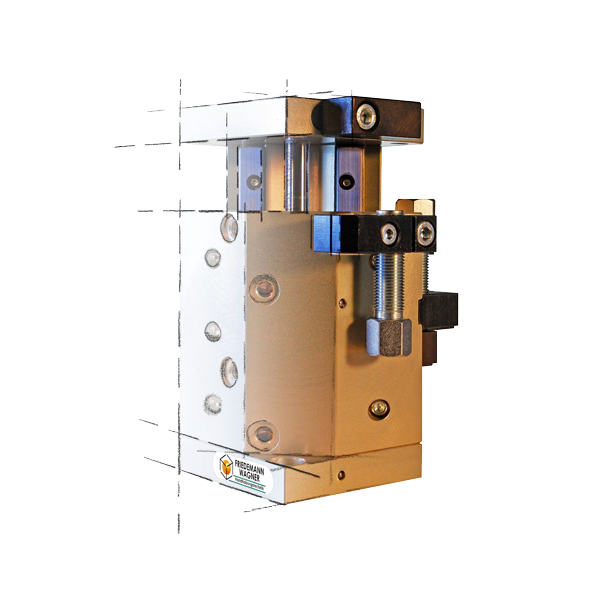

Lifting Units
- external stop-system on toroidal area for high repeatability

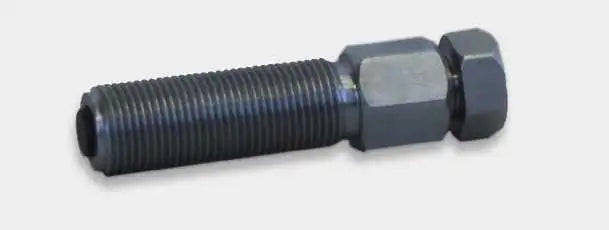

- stop screws for precise infinitely variable adjustment of the stroke
- patented system for the fitting of the proximity switch in the hollow stop screw
- variants up to 470 N impact force and stroke lengths up to 100 mm
- fitting for hydraulic dampers for high mass
- grid dimensions for precise, clearance free centering system for mounting without drilling or pinning

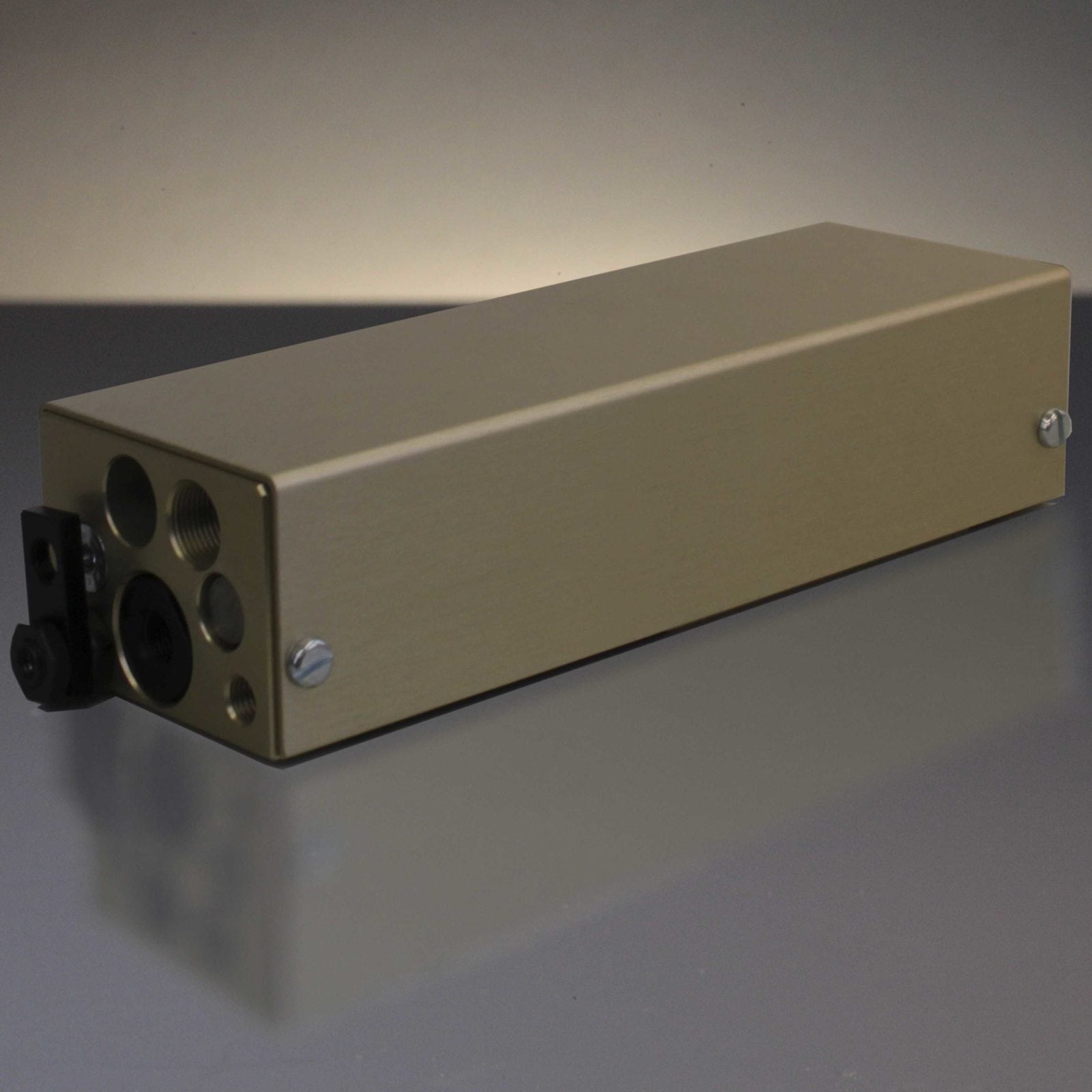

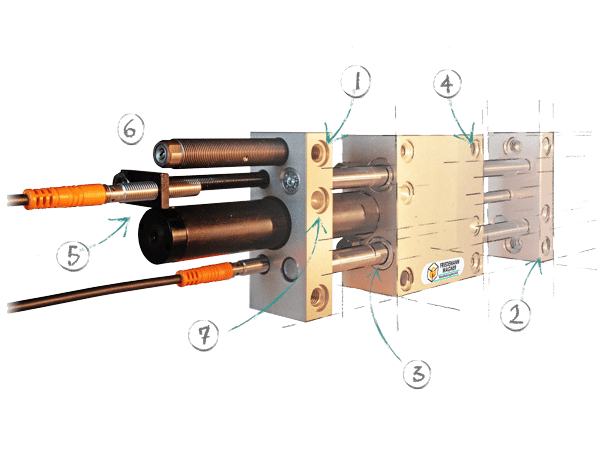

Linear Units
- various designs of 20 to 500 mm stroke – some for portal operation
- force up to 440 N with accuracies between +/-0.01 mm to +/-0, 03 mm
- different bearing types to conduct up to 70 kg of maximum payload
- grid dimensions for precise, clearance free centering system for mounting without drilling or pinning

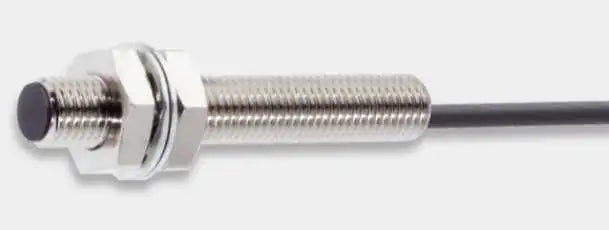

- fitting for inductive proximity switches
- fitting for hydraulic shock absorber
- variants to mount external, hardened stoppers

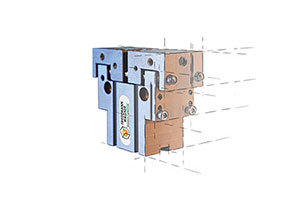

(Parallel) Gripping Units
- various sizes from 2 to 15 mm stroke each jaw and up to 7.2 kg of component weight
- high repetition accuracy of +/-0, 02 mm because of guiding principle
- hardened, polished stainless steel shafts also for abrasive environments
- hard anodized, high-strength aluminium
- fitting for clamping of inductive proximity switches
- C-slots for mounting of magnetic field sensors
- grid dimensions for precise, centering system for mounting without drilling or pinning
Accessories - Examples
Hydraulic shock absorber STD-14
- Adjustment screw for changing the degree of damping
- Hexagon nut to lock the damper
- M14x1 threaded sleeve, Tenifer® treated
- Piston rod, stroke 12mm, retracts flush
